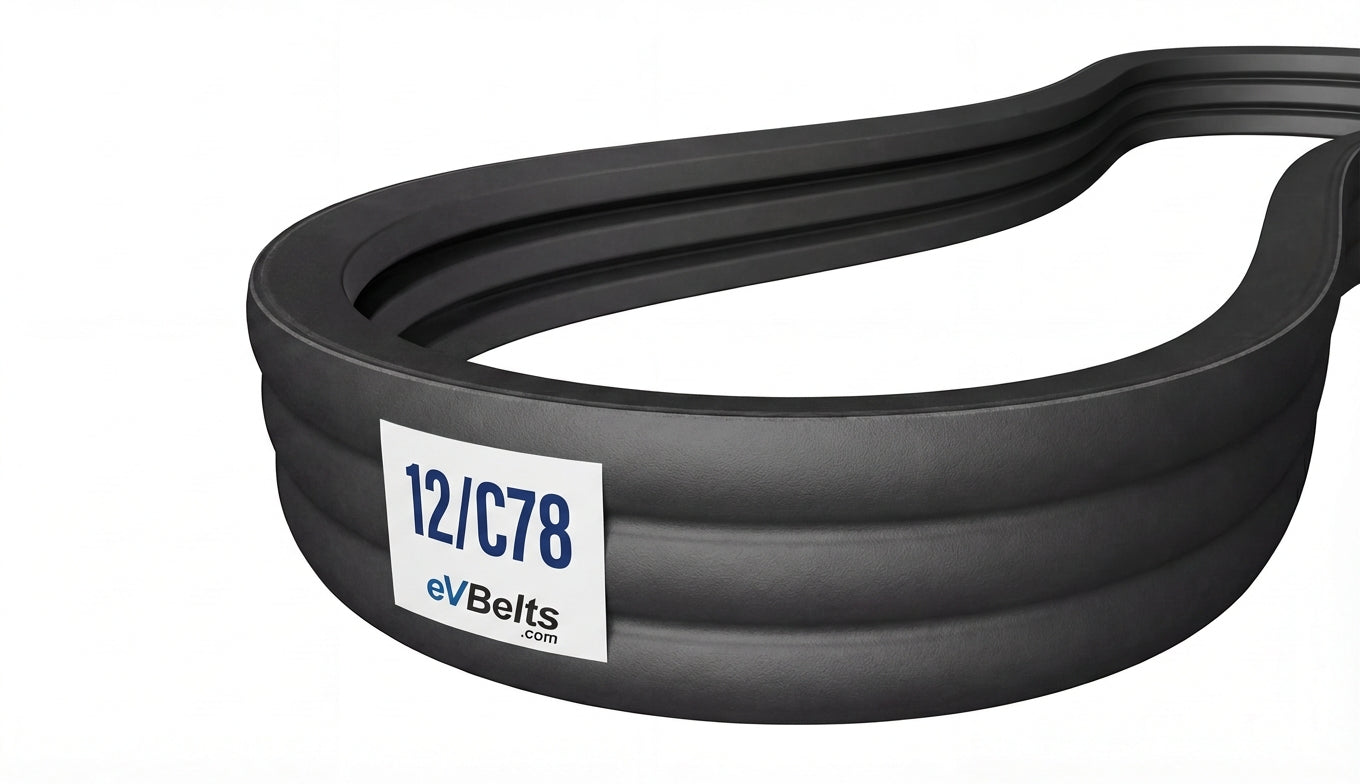

12/C78

Top Width: 10.83" (275.08mm)
Outside Length: 80.9" (2054.9mm)
Inside Length: 78" (1981.2mm)
Min Pulley Diameter: 9"
Configuration: 12-Band Set

The 12/C78 is a factory-joined 12-band C banded belt assembly measuring 10.83" wide x 80.9" long, featuring oil and heat resistant rubber construction.

SKU: 1215703

$342.71

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	12/C78
Top Width	10.83 in / 275.08 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	78.0 in / 1981.2 mm
Outside Length	80.9 in / 2054.9 mm
Effective Length	80.2 in
Min Sheave Diameter	9.0 in / 228.6 mm
Ribs	12
