11/C173

Top Width: 9.925" (252.09mm)
Outside Length: 175.9" (4467.9mm)
Inside Length: 173" (4394.2mm)
Min Pulley Diameter: 9"
Configuration: 11-Band Set

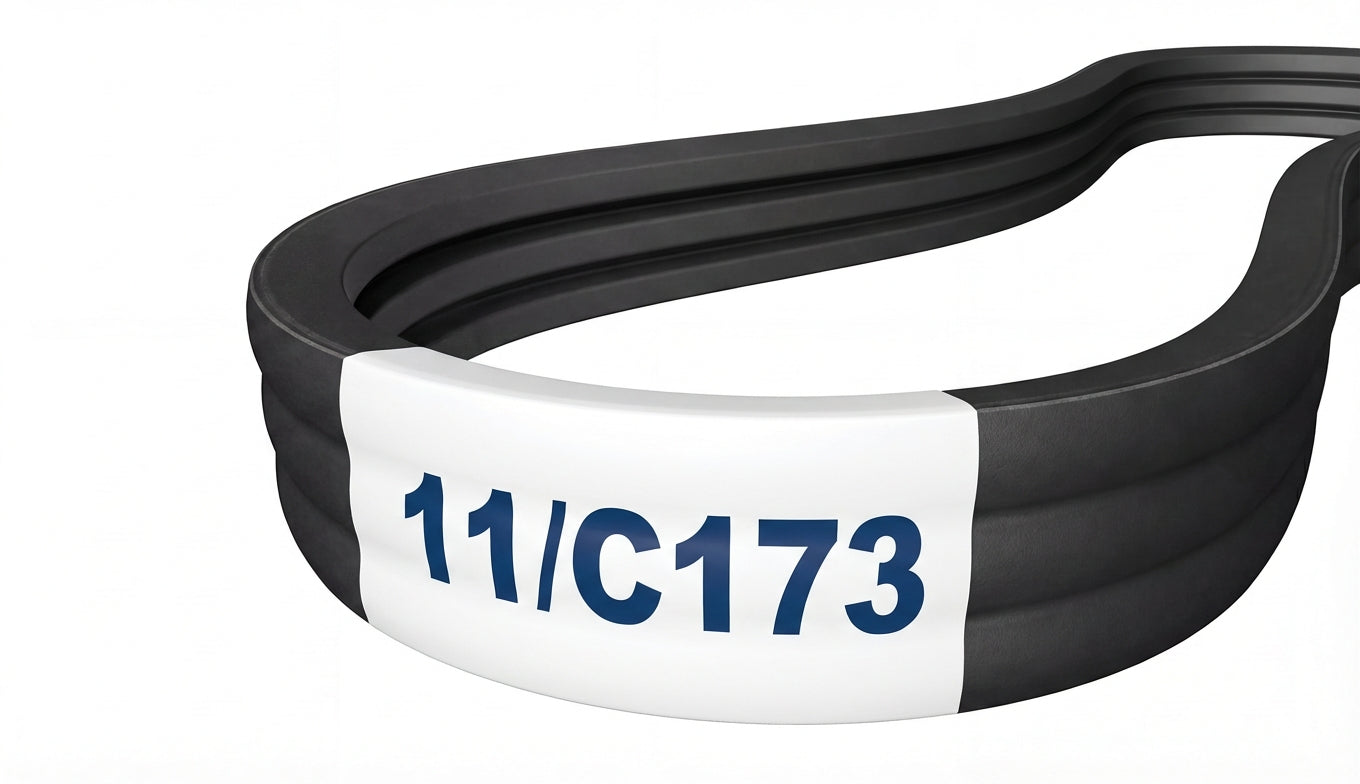

The 11/C173 is a factory-joined 11-band C banded belt assembly measuring 9.925" wide x 175.9" long, featuring oil and heat resistant rubber construction.

SKU: 1215680

$686.73

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	11/C173
Top Width	9.925 in / 252.09 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	173.0 in / 4394.2 mm
Outside Length	175.9 in / 4467.9 mm
Effective Length	175.2 in
Min Sheave Diameter	9.0 in / 228.6 mm
Ribs	11
