10/C345

Top Width: 9.02" (229.11mm)
Outside Length: 347.9" (8836.7mm)
Inside Length: 345" (8763mm)
Min Pulley Diameter: 9"
Configuration: 10-Band Set

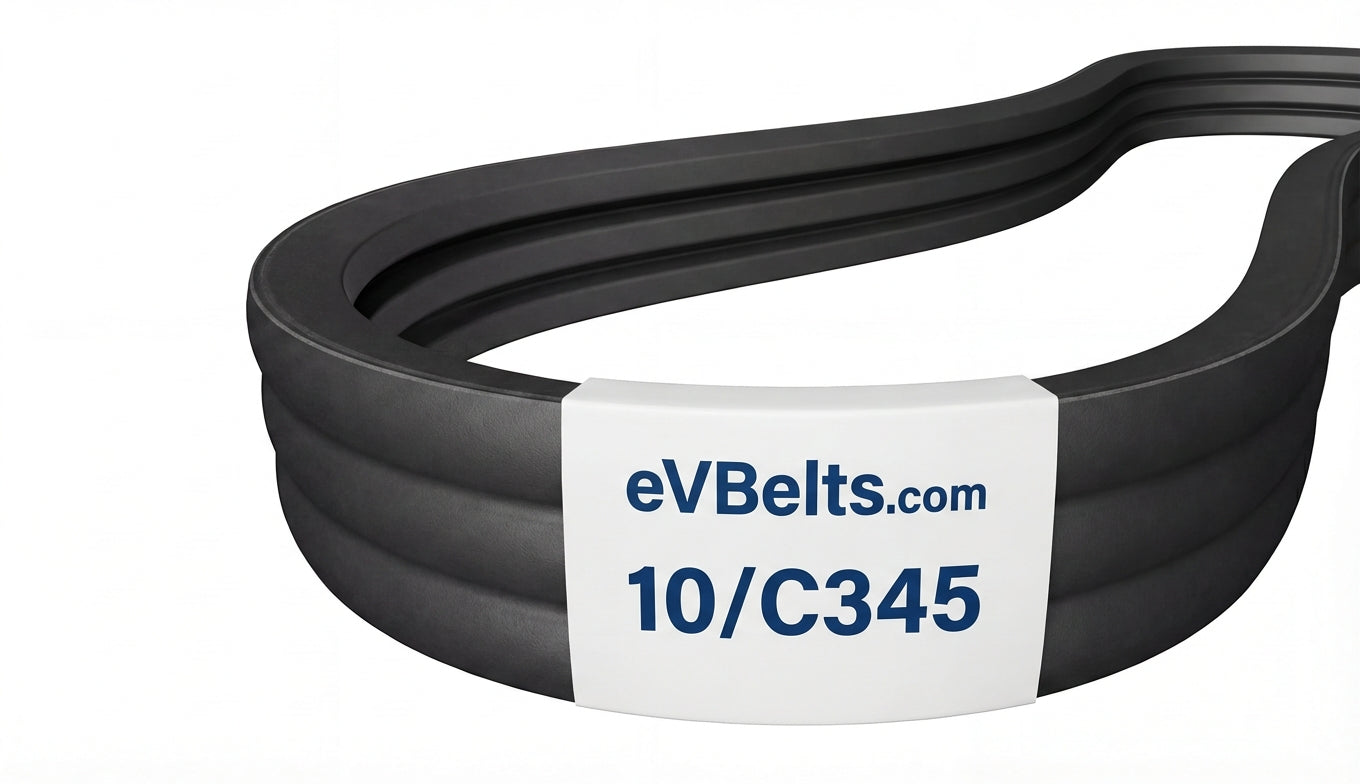

The 10/C345 is a factory-joined 10-band C banded belt assembly measuring 9.02" wide x 347.9" long, featuring oil and heat resistant rubber construction.

SKU: 1215647

$1,232.26

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	10/C345
Top Width	9.02 in / 229.11 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	345.0 in / 8763.0 mm
Outside Length	347.9 in / 8836.7 mm
Effective Length	347.2 in
Min Sheave Diameter	9.0 in / 228.6 mm
Ribs	10
