10/C190

Top Width: 9.02" (229.11mm)
Outside Length: 192.9" (4899.7mm)
Inside Length: 190" (4826mm)
Min Pulley Diameter: 9"
Configuration: 10-Band Set

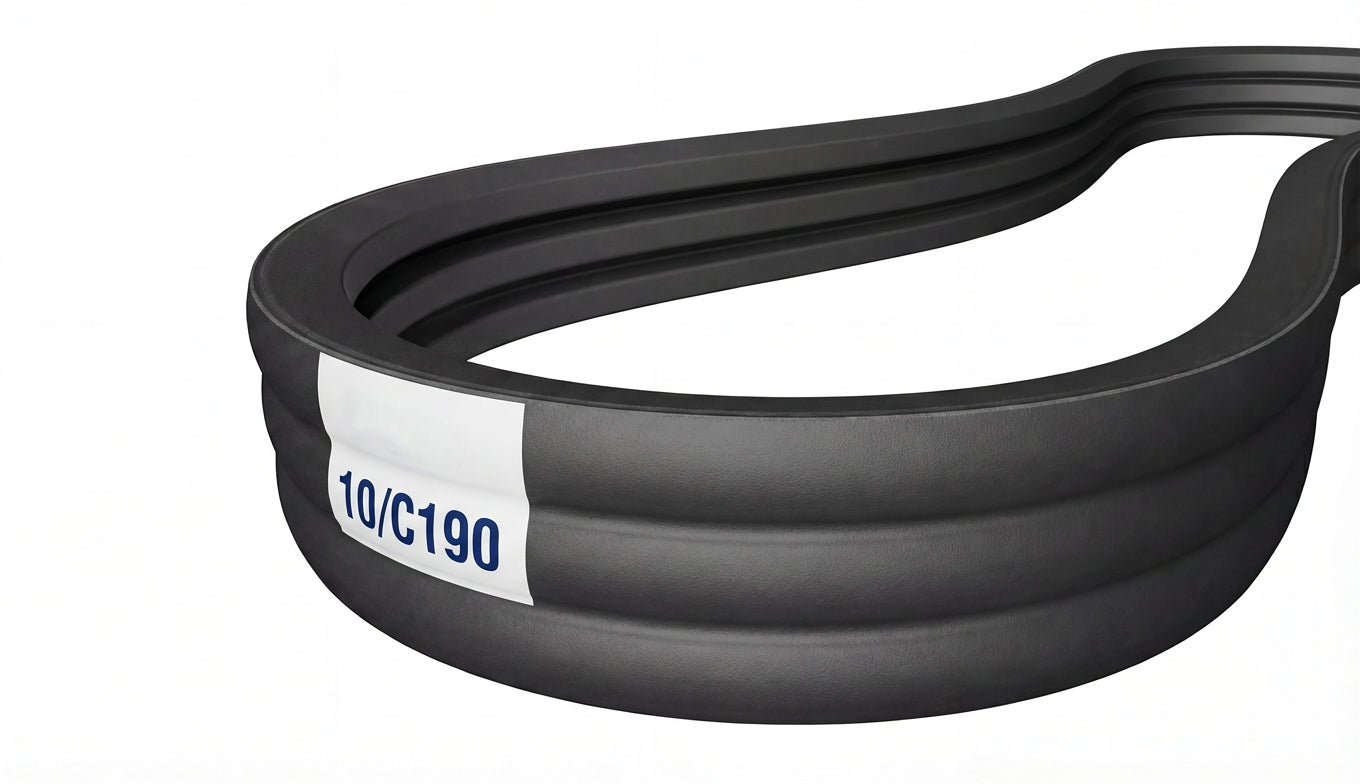

The 10/C190 is a factory-joined 10-band C banded belt assembly measuring 9.02" wide x 192.9" long, featuring oil and heat resistant rubber construction.

SKU: 1215636

$687.86

0 In Stock

In stock and ready to ship

Estimated delivery between June 22 and June 24.

Technical Specifications

Part Number	10/C190
Top Width	9.02 in / 229.11 mm
Belt Depth	0.5313 in / 13.5 mm
Inside Length	190.0 in / 4826.0 mm
Outside Length	192.9 in / 4899.7 mm
Effective Length	192.2 in
Min Sheave Diameter	9.0 in / 228.6 mm
Ribs	10
