BX24
BX24
/
/

BX24

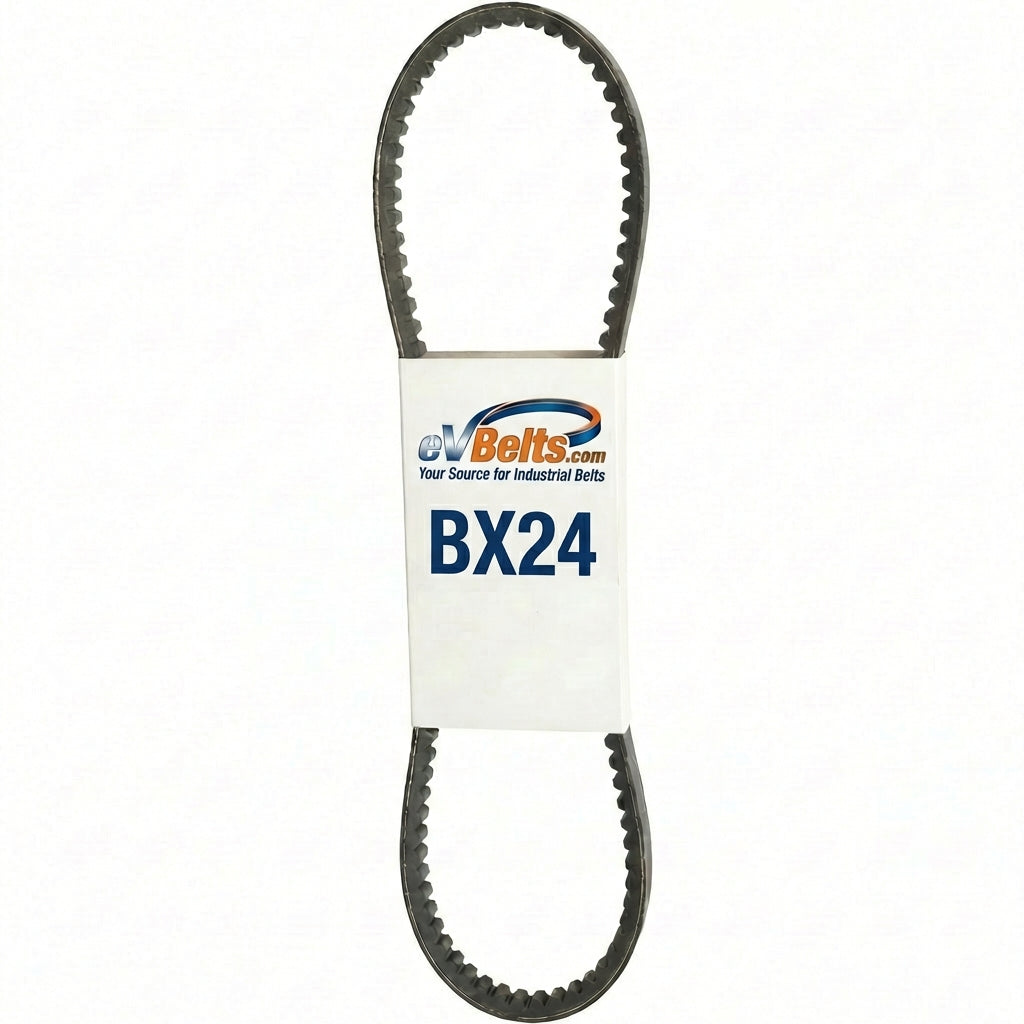

The BX24 is a cogged (notched) V-belt measuring 0.656" wide x 25.8" long, offering improved flexibility around smaller pulleys.

SKU: 1213241

$7.43

131 In Stock

In stock and ready to ship

Estimated delivery between June 16 and June 18.

Technical Specifications
Part Number BX24
Top Width 0.656 in / 16.66 mm
Belt Depth 0.4375 in / 11.11 mm
Inside Length 24.0 in / 609.6 mm
Outside Length 25.8 in / 655.3 mm
Effective Length 25.4 in
Min Sheave Diameter 4.0 in / 101.6 mm
Cogged Yes
