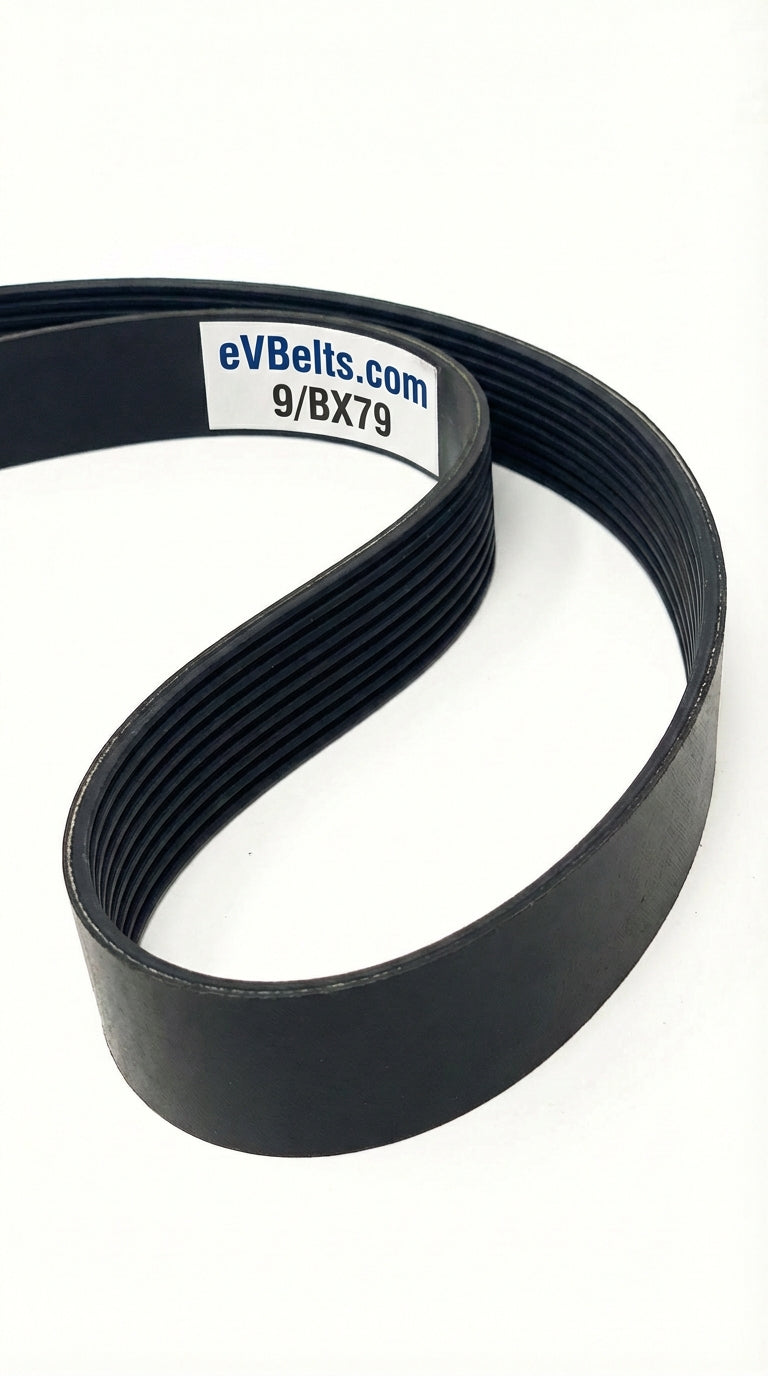

9/BX79

Top Width: 6.144" (156.06mm)
Outside Length: 80.8" (2052.3mm)
Inside Length: 79" (2006.6mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 9-Band Set

The 9/BX79 is a factory-joined 9-band BX banded belt assembly measuring 6.144" wide x 80.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216698

$305.76

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	9/BX79
Top Width	6.144 in / 156.06 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	79.0 in / 2006.6 mm
Outside Length	80.8 in / 2052.3 mm
Effective Length	80.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	9
Cogged	Yes
