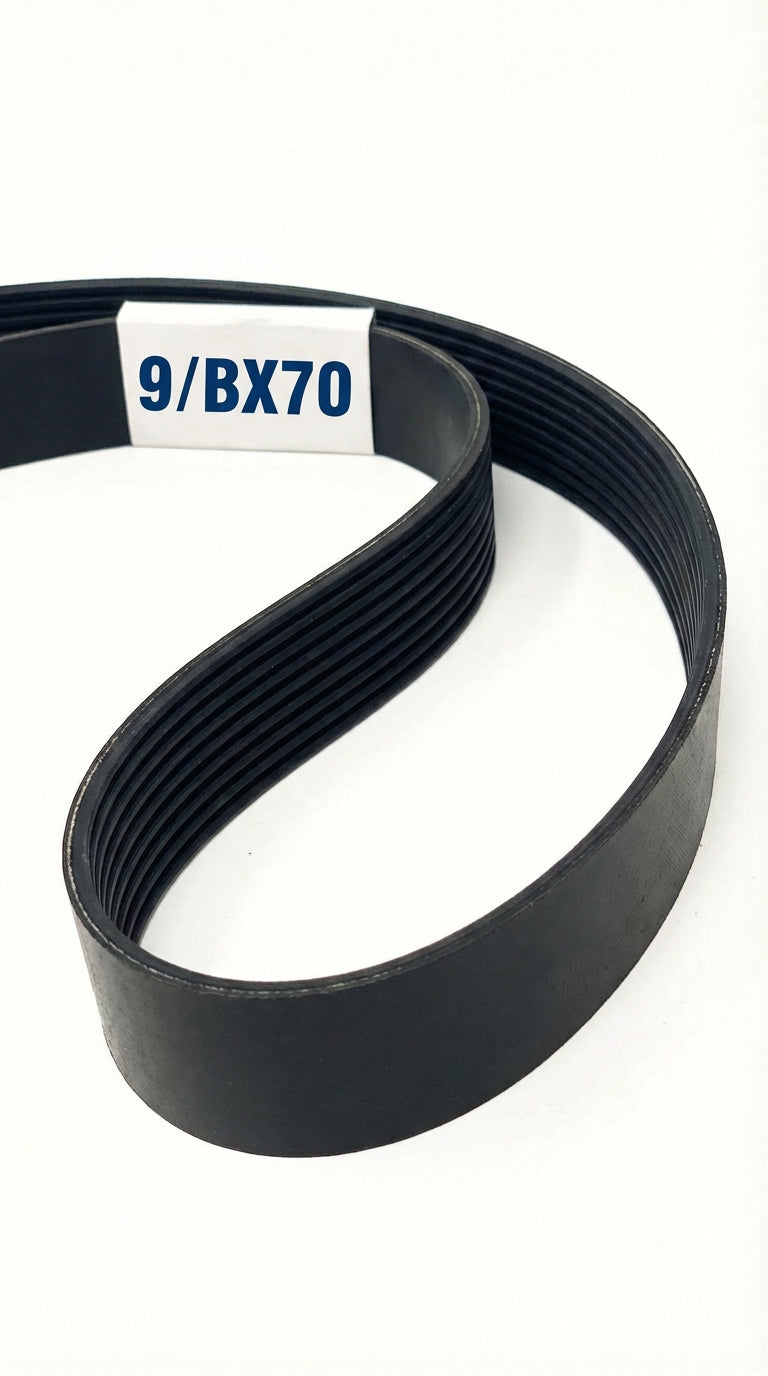

9/BX70

Top Width: 6.144" (156.06mm)
Outside Length: 71.8" (1823.7mm)
Inside Length: 70" (1778mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 9-Band Set

The 9/BX70 is a factory-joined 9-band BX banded belt assembly measuring 6.144" wide x 71.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216693

$272.77

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	9/BX70
Top Width	6.144 in / 156.06 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	70.0 in / 1778.0 mm
Outside Length	71.8 in / 1823.7 mm
Effective Length	71.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	9
Cogged	Yes
