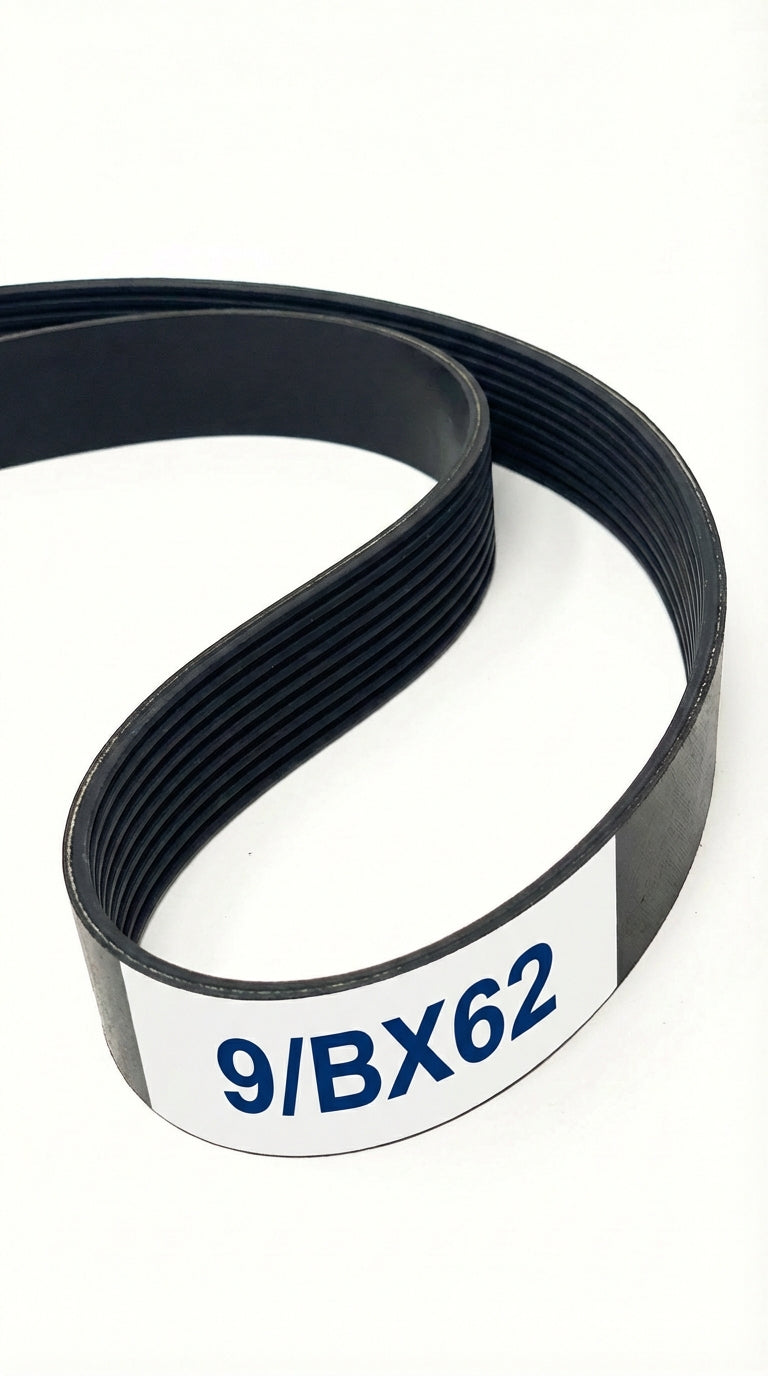

9/BX62

Top Width: 6.144" (156.06mm)
Outside Length: 63.8" (1620.5mm)
Inside Length: 62" (1574.8mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 9-Band Set

The 9/BX62 is a factory-joined 9-band BX banded belt assembly measuring 6.144" wide x 63.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216686

$247.81

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	9/BX62
Top Width	6.144 in / 156.06 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	62.0 in / 1574.8 mm
Outside Length	63.8 in / 1620.5 mm
Effective Length	63.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	9
Cogged	Yes
