9/BX60

Top Width: 6.144" (156.06mm)
Outside Length: 61.8" (1569.7mm)
Inside Length: 60" (1524mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 9-Band Set

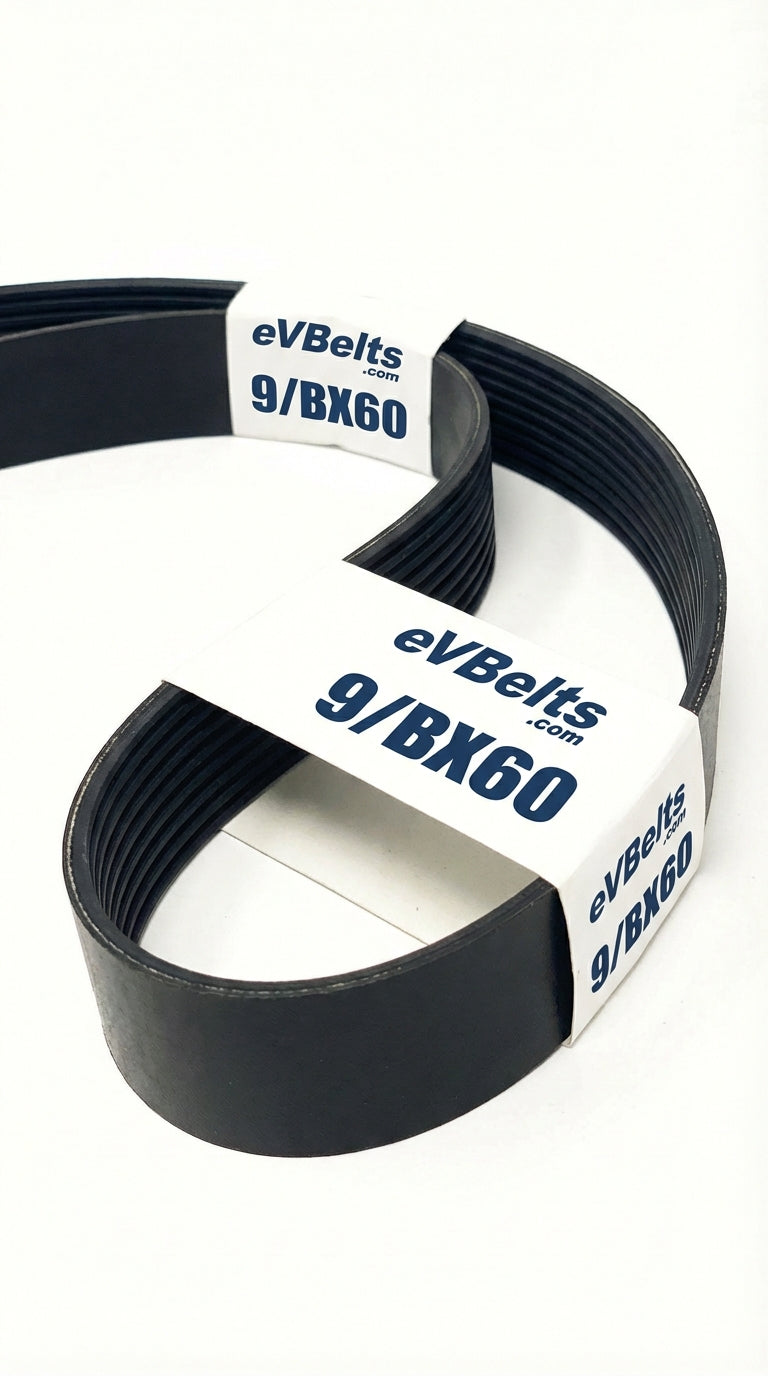

The 9/BX60 is a factory-joined 9-band BX banded belt assembly measuring 6.144" wide x 61.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216685

$241.65

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	9/BX60
Top Width	6.144 in / 156.06 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	60.0 in / 1524.0 mm
Outside Length	61.8 in / 1569.7 mm
Effective Length	61.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	9
Cogged	Yes
