8/BX85

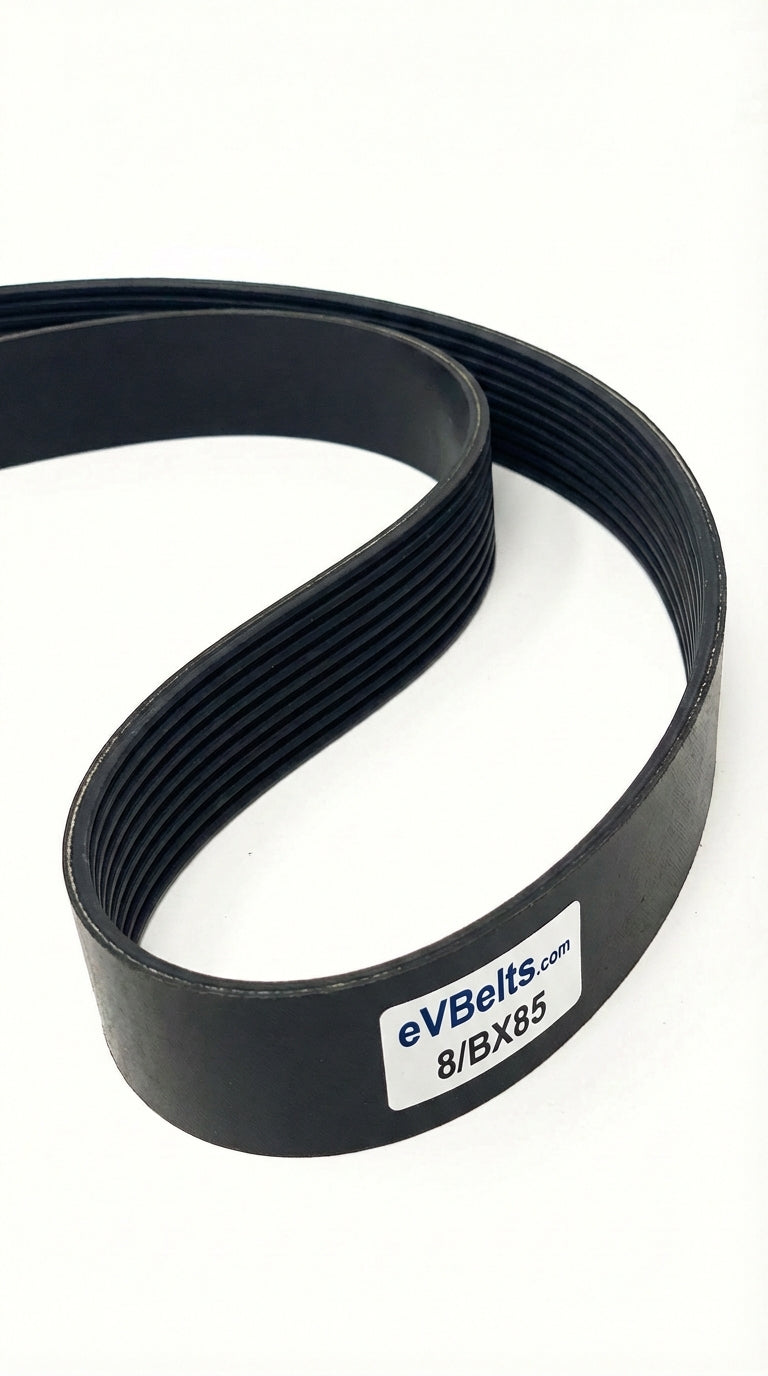

The 8/BX85 is a factory-joined 8-band BX banded belt assembly measuring 5.458" wide x 86.8" long, offering improved flexibility around smaller pulleys.
SKU: 1216662
$293.36
29336
0 In Stock
Estimated delivery between June 19 and June 21.
Technical Specifications
| Part Number | 8/BX85 |
| Top Width | 5.458 in / 138.63 mm |
| Belt Depth | 0.4375 in / 11.11 mm |
| Inside Length | 85.0 in / 2159.0 mm |
| Outside Length | 86.8 in / 2204.7 mm |
| Effective Length | 86.4 in |
| Min Sheave Diameter | 4.0 in / 101.6 mm |
| Ribs | 8 |
| Cogged | Yes |
