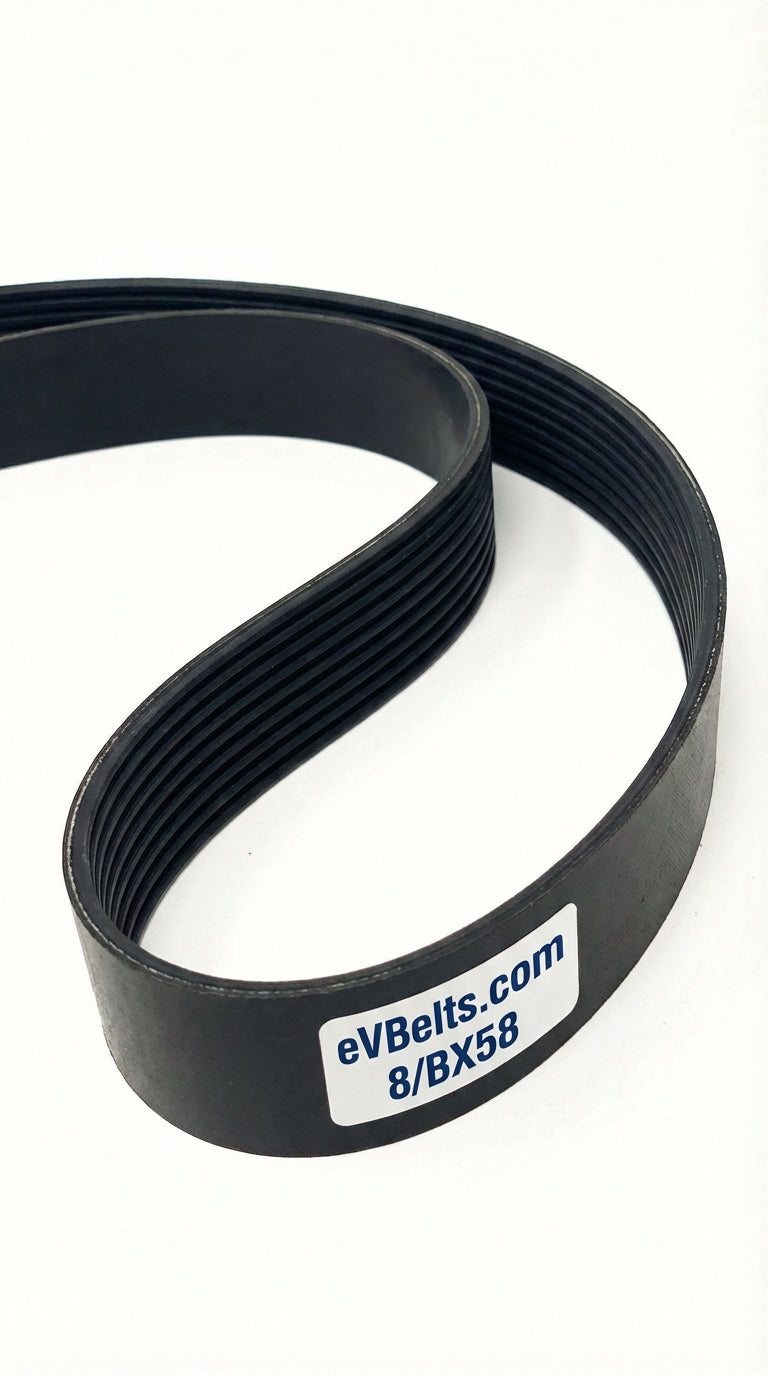

8/BX58

Top Width: 5.458" (138.63mm)
Outside Length: 59.8" (1518.9mm)
Inside Length: 58" (1473.2mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 8-Band Set

The 8/BX58 is a factory-joined 8-band BX banded belt assembly measuring 5.458" wide x 59.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216644

$211.75

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	8/BX58
Top Width	5.458 in / 138.63 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	58.0 in / 1473.2 mm
Outside Length	59.8 in / 1518.9 mm
Effective Length	59.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	8
Cogged	Yes
