8/BX140

Top Width: 5.458" (138.63mm)
Outside Length: 141.8" (3601.7mm)
Inside Length: 140" (3556mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 8-Band Set

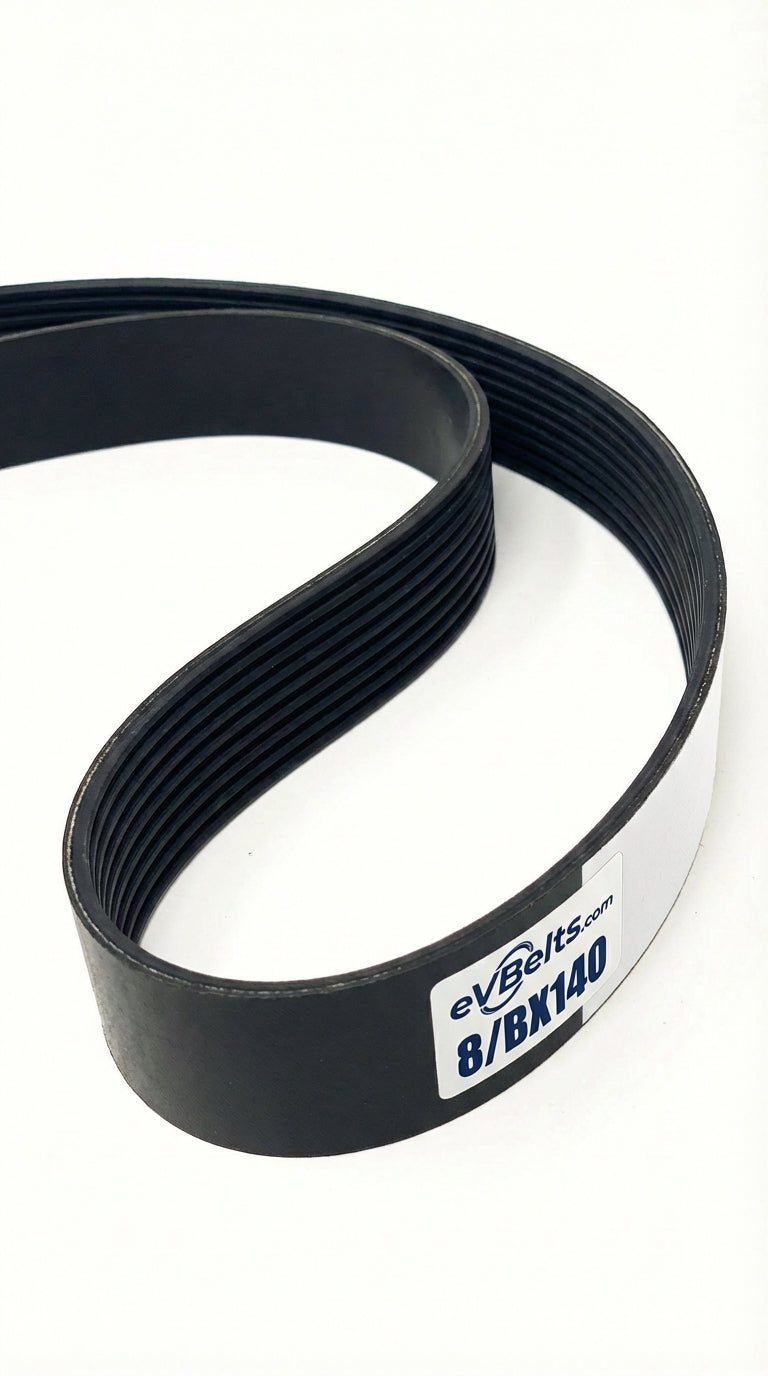

The 8/BX140 is a factory-joined 8-band BX banded belt assembly measuring 5.458" wide x 141.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216676

$480.14

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	8/BX140
Top Width	5.458 in / 138.63 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	140.0 in / 3556.0 mm
Outside Length	141.8 in / 3601.7 mm
Effective Length	141.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	8
Cogged	Yes
