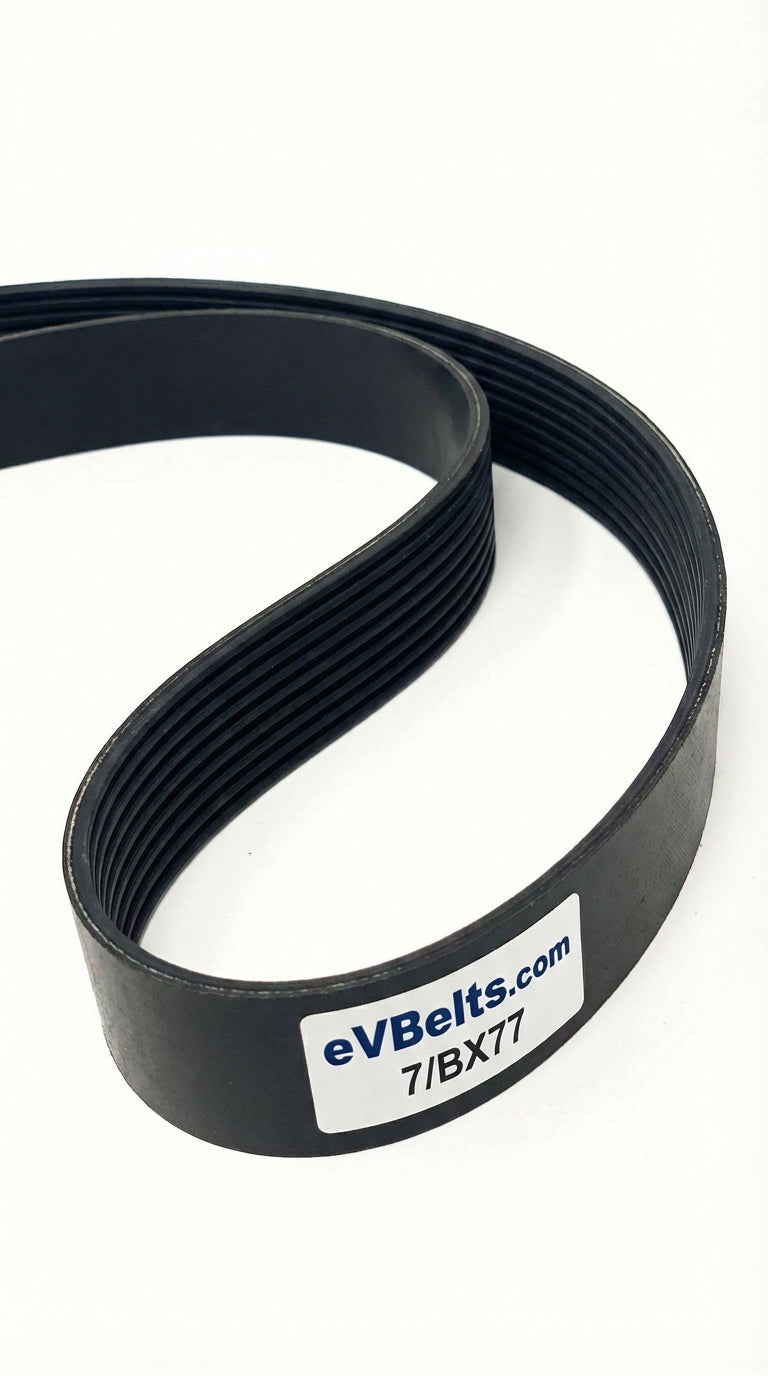

7/BX77

Top Width: 4.772" (121.21mm)
Outside Length: 78.8" (2001.5mm)
Inside Length: 77" (1955.8mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 7-Band Set

The 7/BX77 is a factory-joined 7-band BX banded belt assembly measuring 4.772" wide x 78.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216617

$231.65

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	7/BX77
Top Width	4.772 in / 121.21 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	77.0 in / 1955.8 mm
Outside Length	78.8 in / 2001.5 mm
Effective Length	78.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	7
Cogged	Yes
