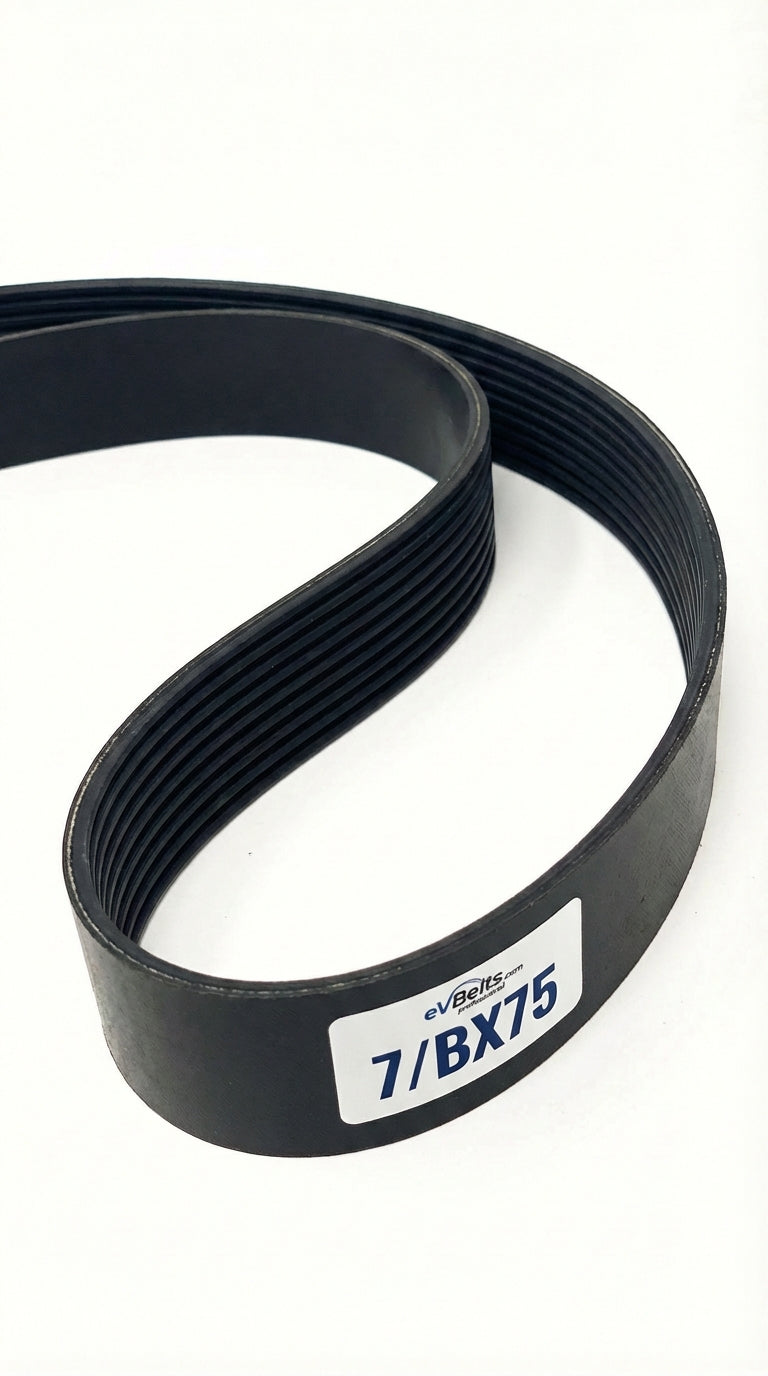

7/BX75

Top Width: 4.772" (121.21mm)
Outside Length: 76.8" (1950.7mm)
Inside Length: 75" (1905mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 7-Band Set

The 7/BX75 is a factory-joined 7-band BX banded belt assembly measuring 4.772" wide x 76.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216615

$225.25

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	7/BX75
Top Width	4.772 in / 121.21 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	75.0 in / 1905.0 mm
Outside Length	76.8 in / 1950.7 mm
Effective Length	76.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	7
Cogged	Yes
