7/BX56

Top Width: 4.772" (121.21mm)
Outside Length: 57.8" (1468.1mm)
Inside Length: 56" (1422.4mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 7-Band Set

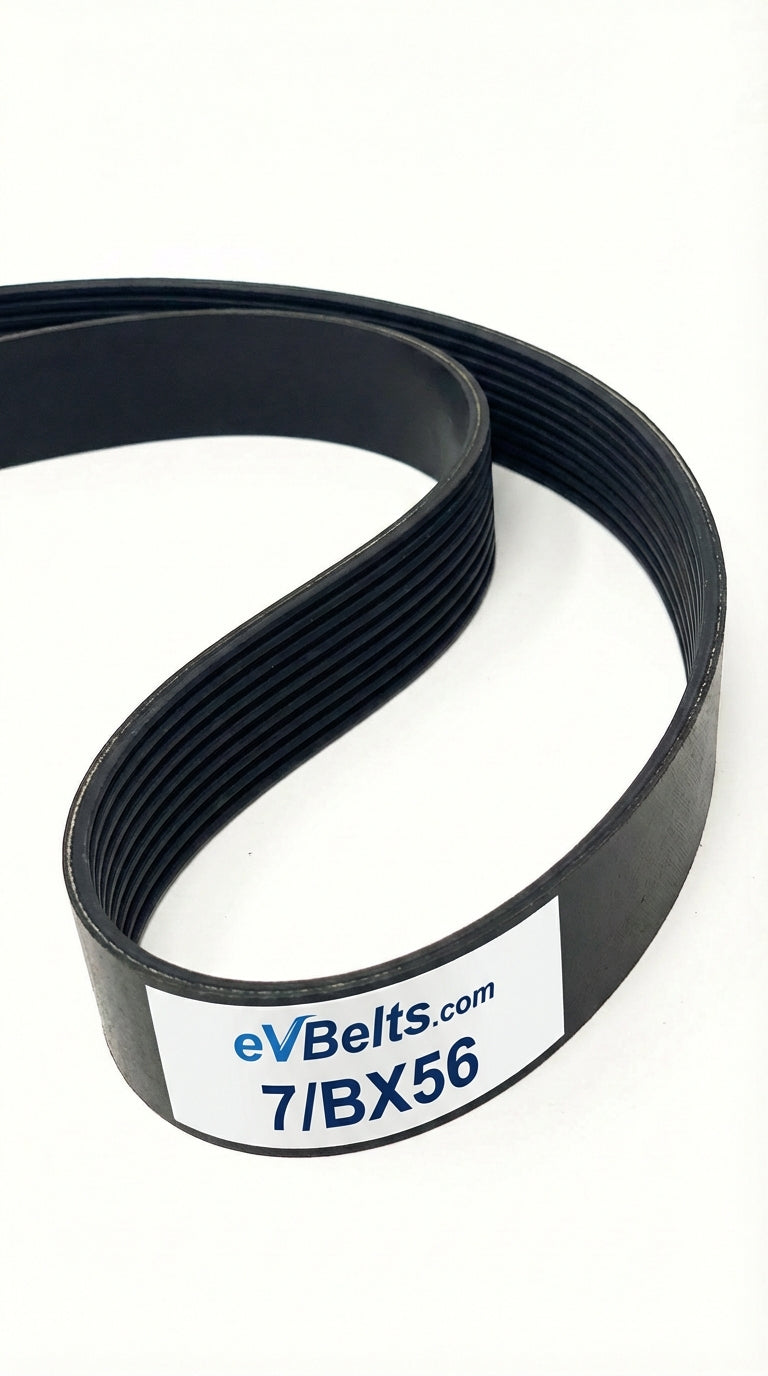

The 7/BX56 is a factory-joined 7-band BX banded belt assembly measuring 4.772" wide x 57.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216603

$182.85

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	7/BX56
Top Width	4.772 in / 121.21 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	56.0 in / 1422.4 mm
Outside Length	57.8 in / 1468.1 mm
Effective Length	57.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	7
Cogged	Yes
