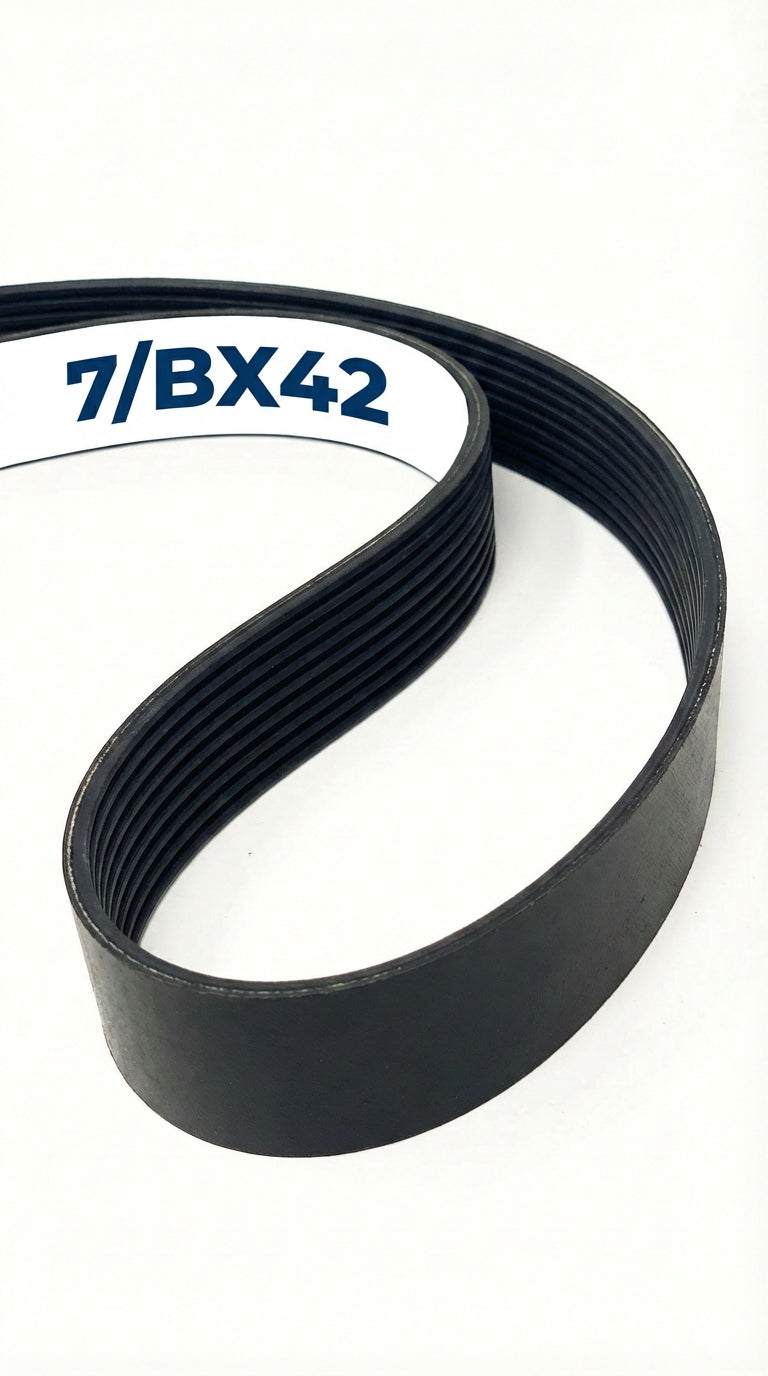

7/BX42

Top Width: 4.772" (121.21mm)
Outside Length: 43.8" (1112.5mm)
Inside Length: 42" (1066.8mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 7-Band Set

The 7/BX42 is a factory-joined 7-band BX banded belt assembly measuring 4.772" wide x 43.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216597

$150.19

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	7/BX42
Top Width	4.772 in / 121.21 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	42.0 in / 1066.8 mm
Outside Length	43.8 in / 1112.5 mm
Effective Length	43.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	7
Cogged	Yes
