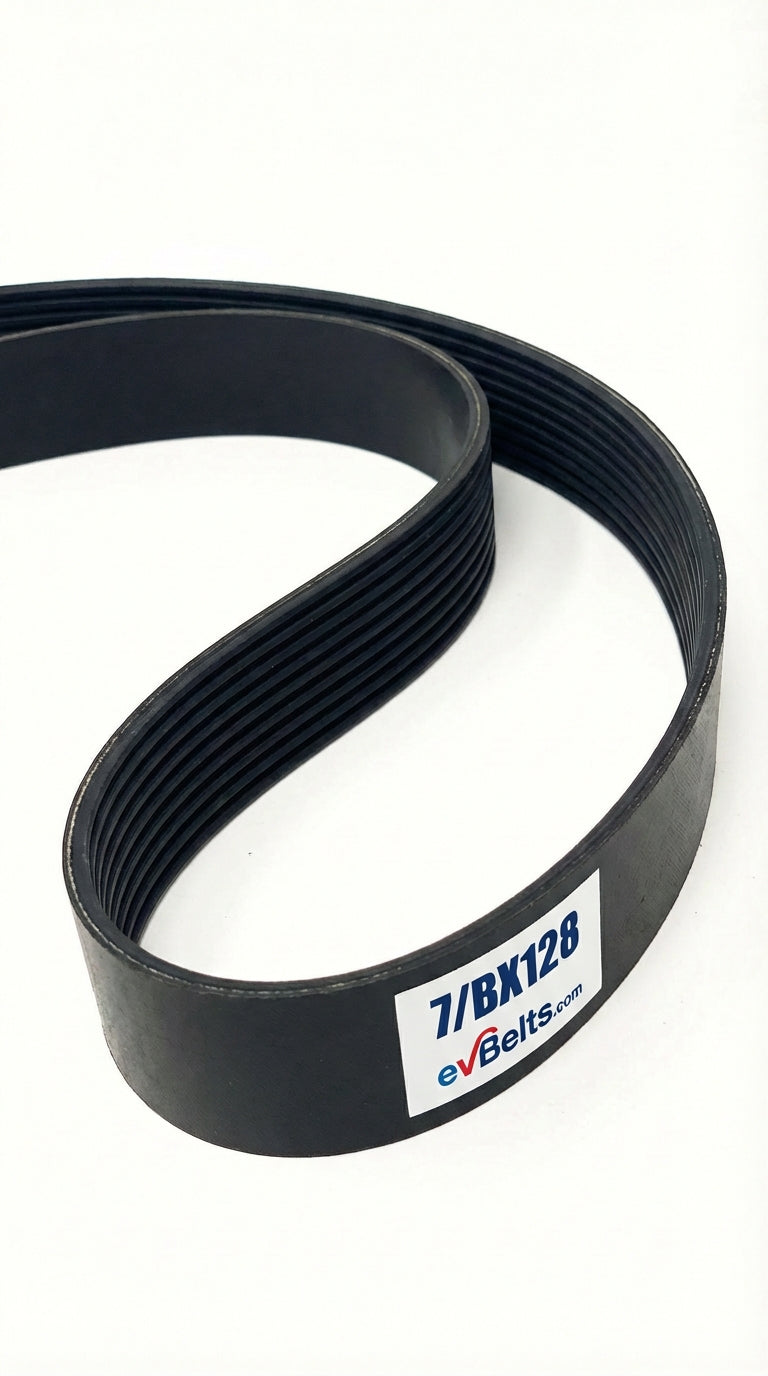

7/BX128

Top Width: 4.772" (121.21mm)
Outside Length: 129.8" (3296.9mm)
Inside Length: 128" (3251.2mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 7-Band Set

The 7/BX128 is a factory-joined 7-band BX banded belt assembly measuring 4.772" wide x 129.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216631

$381.92

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	7/BX128
Top Width	4.772 in / 121.21 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	128.0 in / 3251.2 mm
Outside Length	129.8 in / 3296.9 mm
Effective Length	129.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	7
Cogged	Yes
