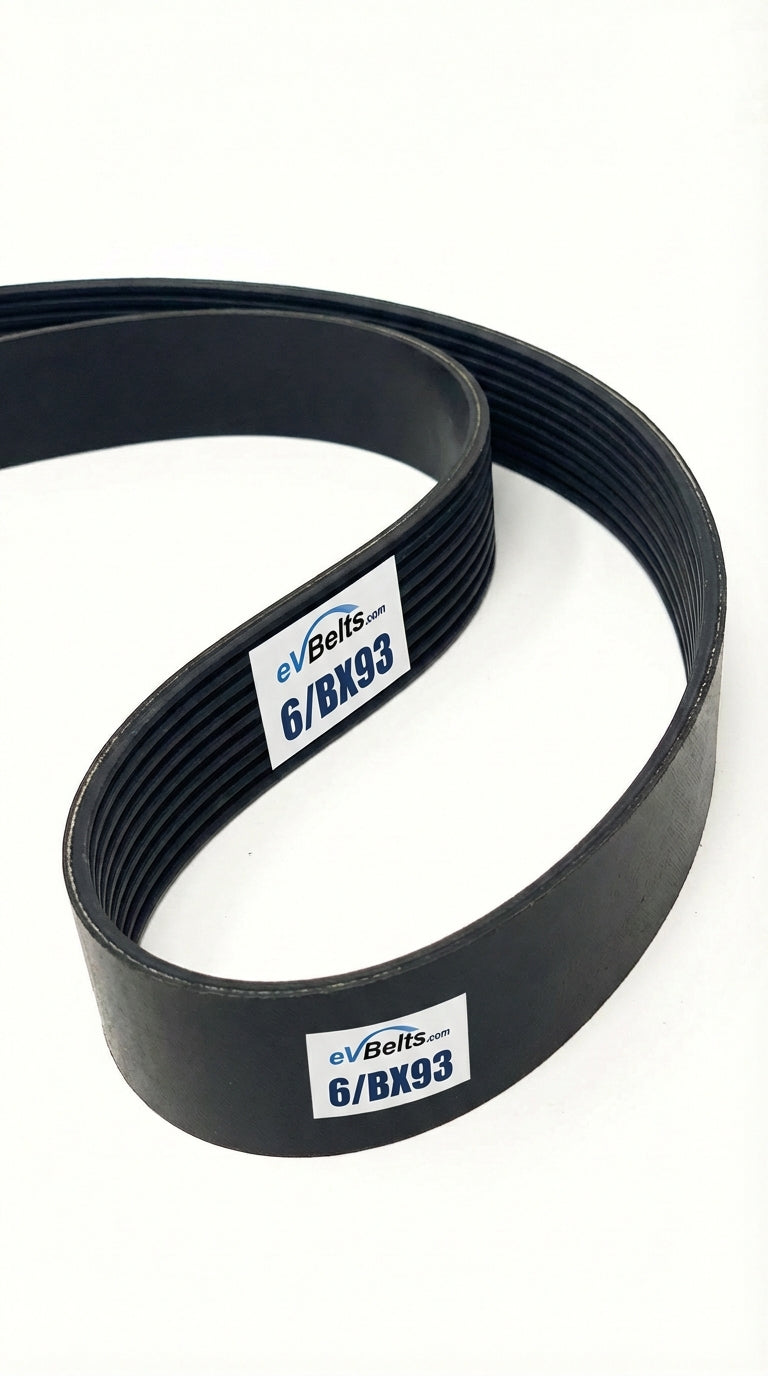

6/BX93

Top Width: 4.086" (103.78mm)
Outside Length: 94.8" (2407.9mm)
Inside Length: 93" (2362.2mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 6-Band Set

The 6/BX93 is a factory-joined 6-band BX banded belt assembly measuring 4.086" wide x 94.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216585

$201.18

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	6/BX93
Top Width	4.086 in / 103.78 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	93.0 in / 2362.2 mm
Outside Length	94.8 in / 2407.9 mm
Effective Length	94.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	6
Cogged	Yes
