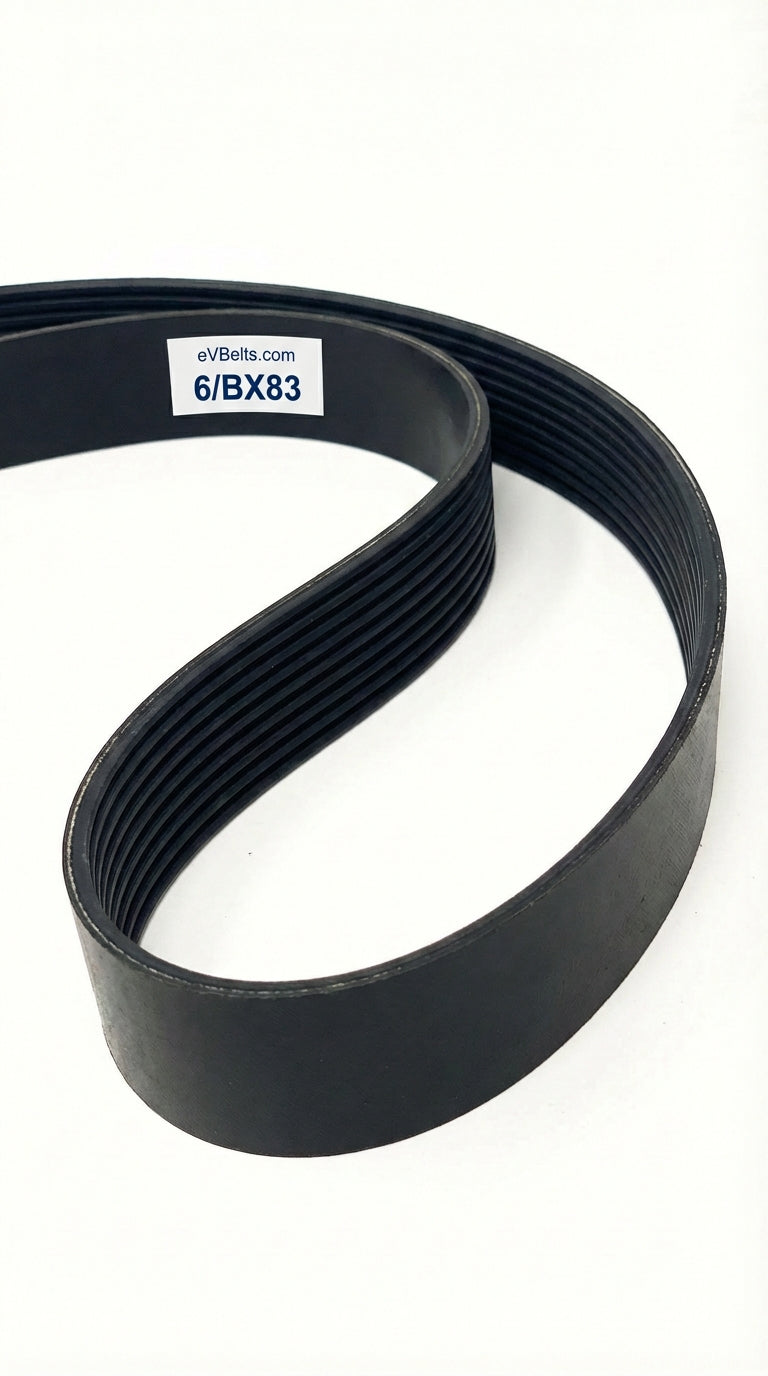

6/BX83

Top Width: 4.086" (103.78mm)
Outside Length: 84.8" (2153.9mm)
Inside Length: 83" (2108.2mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 6-Band Set

The 6/BX83 is a factory-joined 6-band BX banded belt assembly measuring 4.086" wide x 84.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216579

$133.57

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	6/BX83
Top Width	4.086 in / 103.78 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	83.0 in / 2108.2 mm
Outside Length	84.8 in / 2153.9 mm
Effective Length	84.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	6
Cogged	Yes
