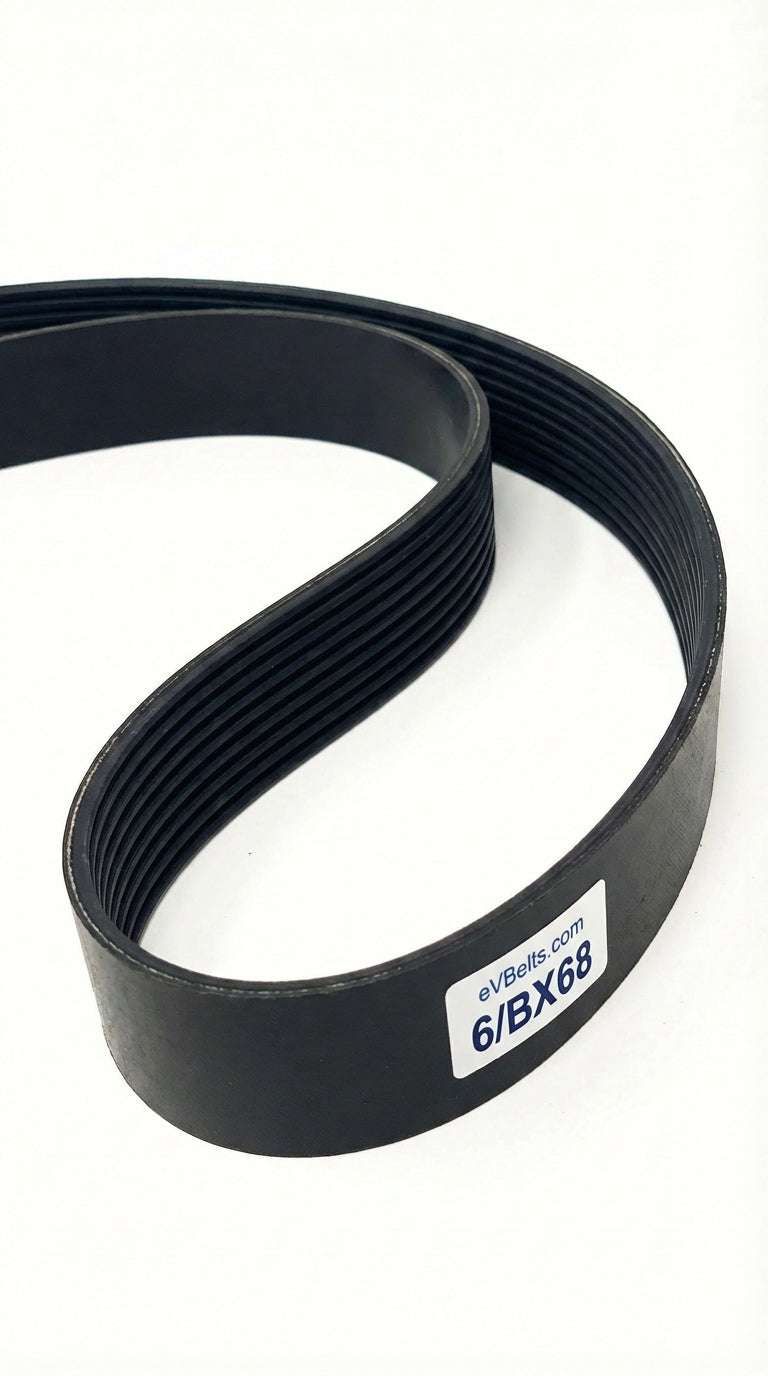

6/BX68

Top Width: 4.086" (103.78mm)
Outside Length: 69.8" (1772.9mm)
Inside Length: 68" (1727.2mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 6-Band Set

The 6/BX68 is a factory-joined 6-band BX banded belt assembly measuring 4.086" wide x 69.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216571

$147.62

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	6/BX68
Top Width	4.086 in / 103.78 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	68.0 in / 1727.2 mm
Outside Length	69.8 in / 1772.9 mm
Effective Length	69.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	6
Cogged	Yes
