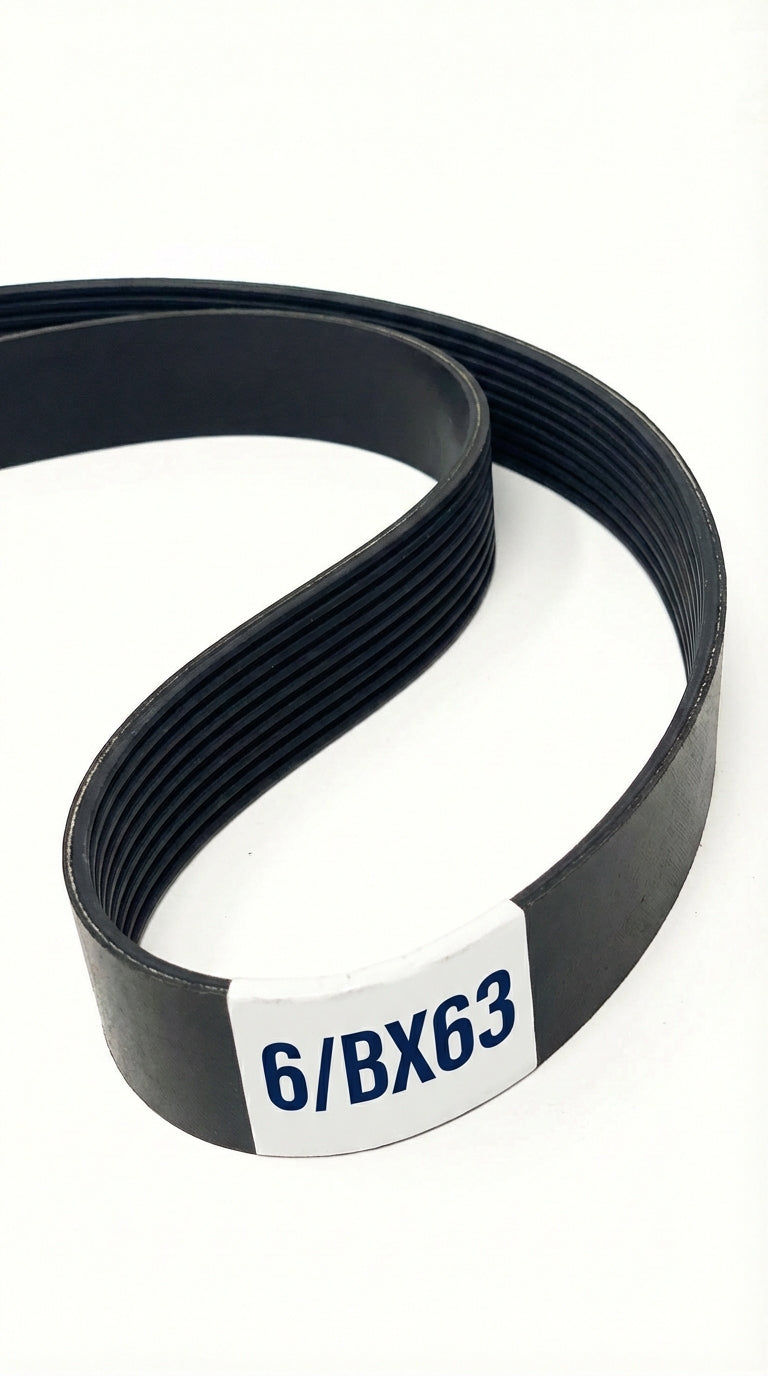

6/BX63

Top Width: 4.086" (103.78mm)
Outside Length: 64.8" (1645.9mm)
Inside Length: 63" (1600.2mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 6-Band Set

The 6/BX63 is a factory-joined 6-band BX banded belt assembly measuring 4.086" wide x 64.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216567

$167.36

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	6/BX63
Top Width	4.086 in / 103.78 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	63.0 in / 1600.2 mm
Outside Length	64.8 in / 1645.9 mm
Effective Length	64.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	6
Cogged	Yes
