6/BX51

Top Width: 4.086" (103.78mm)
Outside Length: 52.8" (1341.1mm)
Inside Length: 51" (1295.4mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 6-Band Set

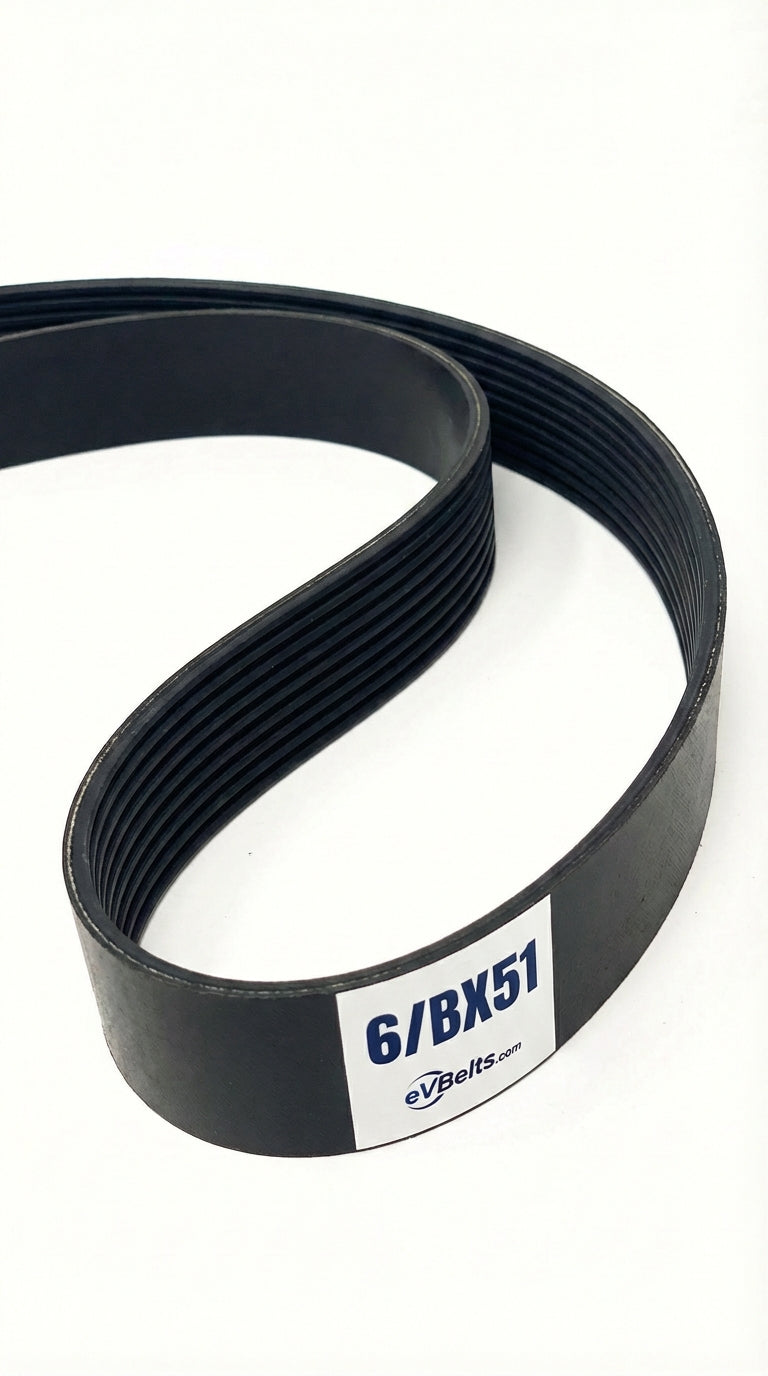

The 6/BX51 is a factory-joined 6-band BX banded belt assembly measuring 4.086" wide x 52.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216559

$150.14

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	6/BX51
Top Width	4.086 in / 103.78 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	51.0 in / 1295.4 mm
Outside Length	52.8 in / 1341.1 mm
Effective Length	52.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	6
Cogged	Yes
