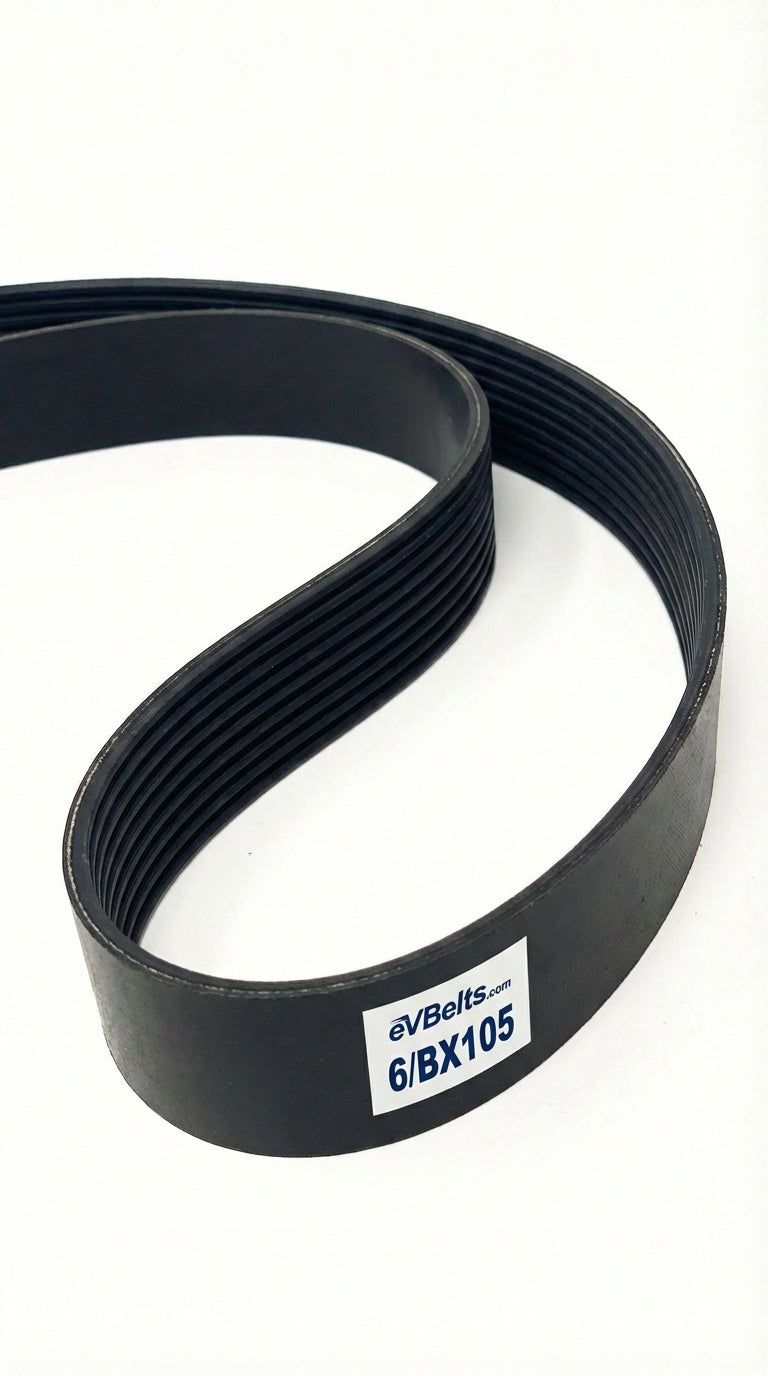

6/BX105

Top Width: 4.086" (103.78mm)
Outside Length: 106.8" (2712.7mm)
Inside Length: 105" (2667mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 6-Band Set

The 6/BX105 is a factory-joined 6-band BX banded belt assembly measuring 4.086" wide x 106.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216590

$233.14

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	6/BX105
Top Width	4.086 in / 103.78 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	105.0 in / 2667.0 mm
Outside Length	106.8 in / 2712.7 mm
Effective Length	106.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	6
Cogged	Yes
