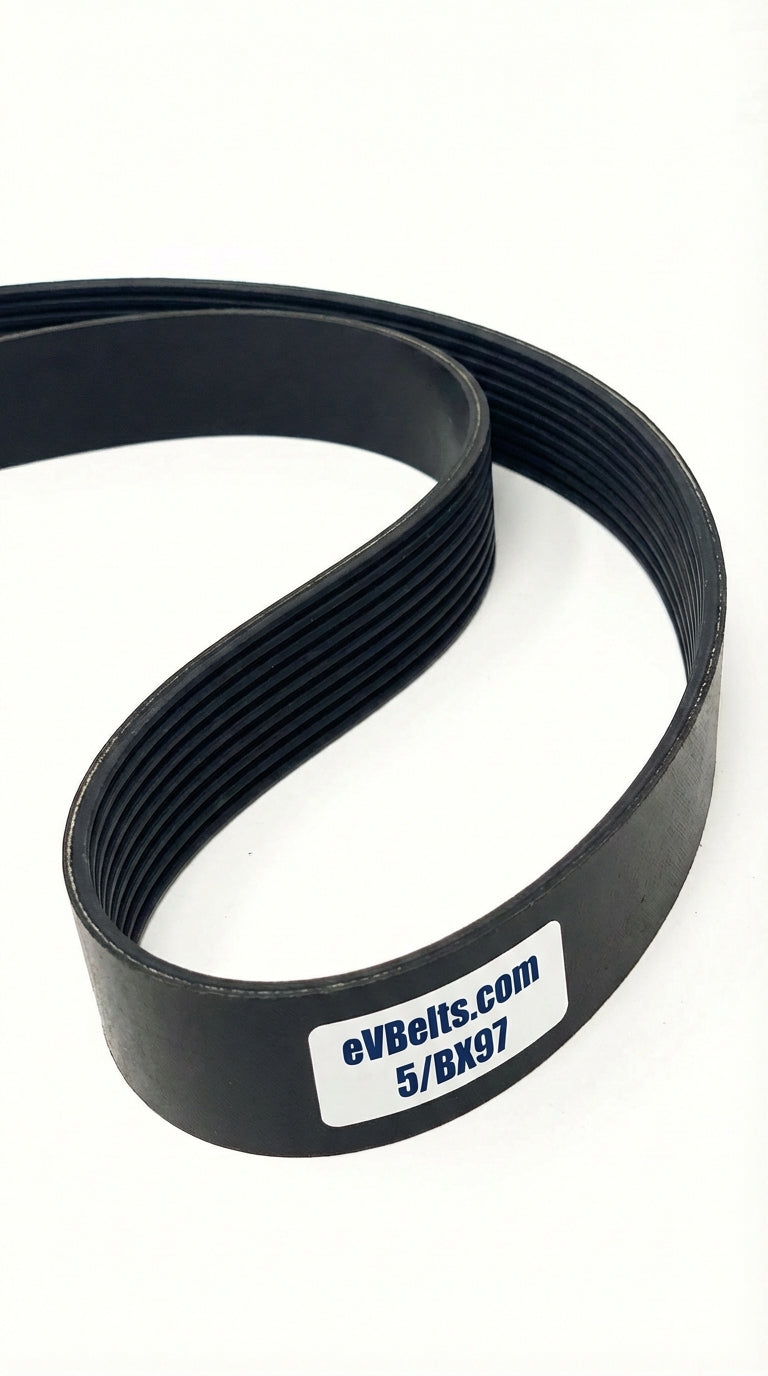

The 5/BX97 is a factory-joined 5-band BX banded belt assembly measuring 3.4" wide x 98.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216548

$166.73

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications
Part Number 5/BX97
Top Width 3.4 in / 86.36 mm
Belt Depth 0.4375 in / 11.11 mm
Inside Length 97.0 in / 2463.8 mm
Outside Length 98.8 in / 2509.5 mm
Effective Length 98.4 in
Min Sheave Diameter 4.0 in / 101.6 mm
Ribs 5
Cogged Yes
