5/BX74
5/BX74
/
/

5/BX74

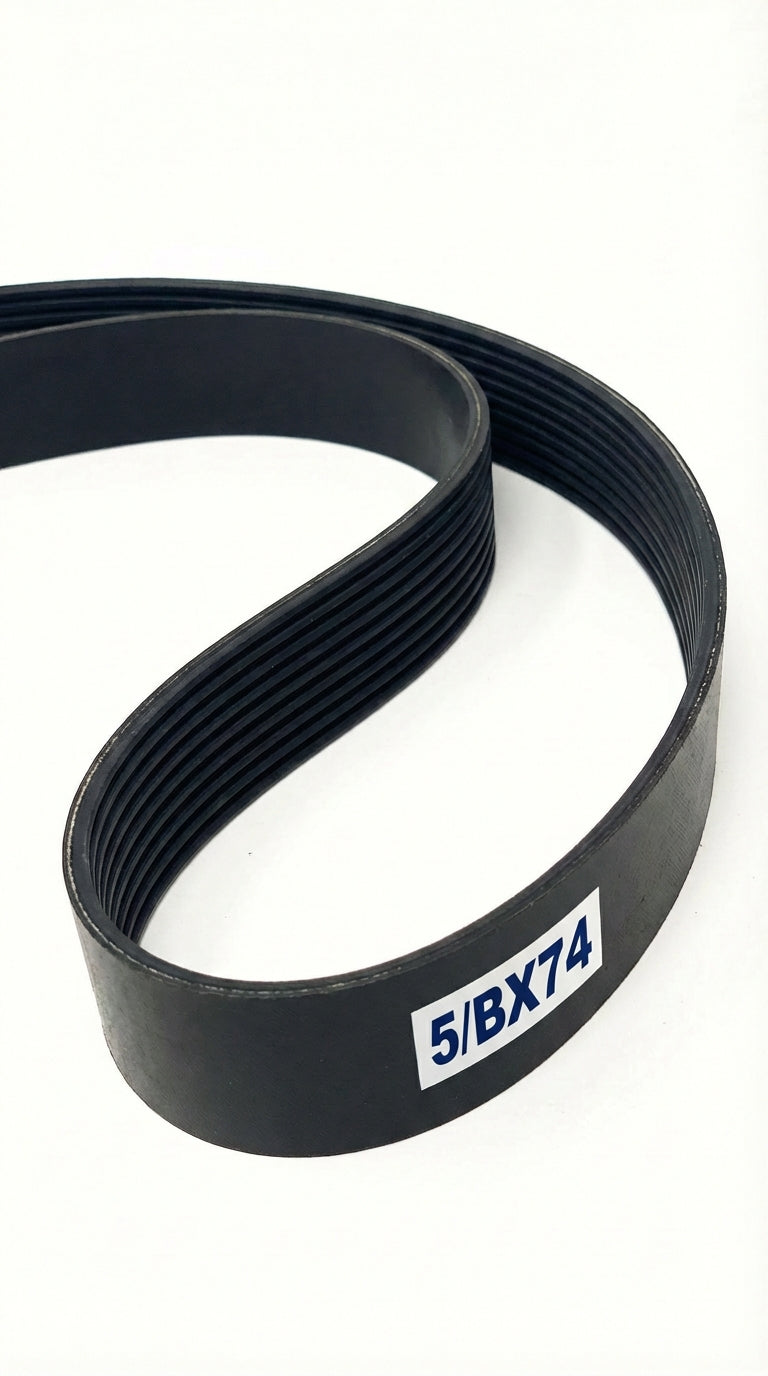

The 5/BX74 is a factory-joined 5-band BX banded belt assembly measuring 3.4" wide x 75.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216535

$94.07

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications
Part Number 5/BX74
Top Width 3.4 in / 86.36 mm
Belt Depth 0.4375 in / 11.11 mm
Inside Length 74.0 in / 1879.6 mm
Outside Length 75.8 in / 1925.3 mm
Effective Length 75.4 in
Min Sheave Diameter 4.0 in / 101.6 mm
Ribs 5
Cogged Yes
