5/BX65
5/BX65
/
/

5/BX65

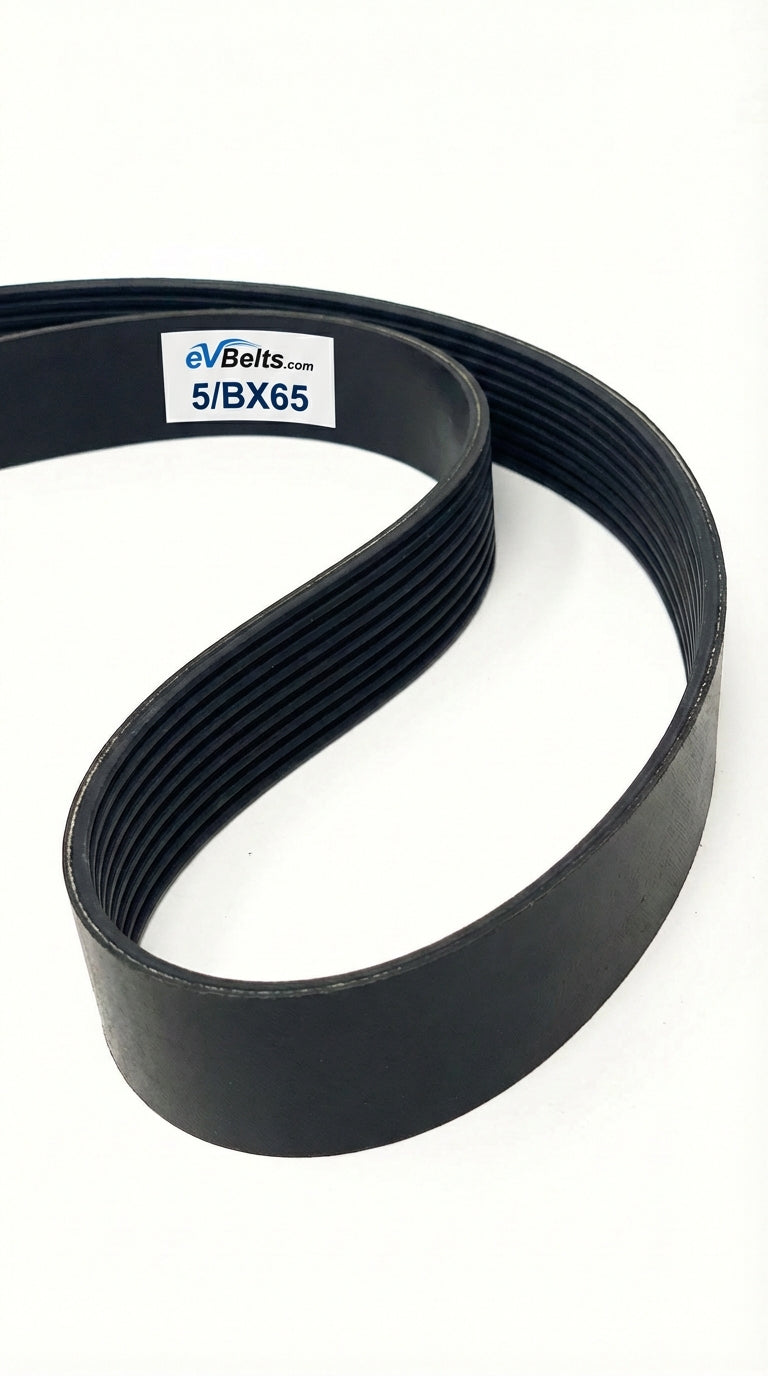

The 5/BX65 is a factory-joined 5-band BX banded belt assembly measuring 3.4" wide x 66.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216529

$142.15

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications
Part Number 5/BX65
Top Width 3.4 in / 86.36 mm
Belt Depth 0.4375 in / 11.11 mm
Inside Length 65.0 in / 1651.0 mm
Outside Length 66.8 in / 1696.7 mm
Effective Length 66.4 in
Min Sheave Diameter 4.0 in / 101.6 mm
Ribs 5
Cogged Yes
