5/BX46
5/BX46
/
/

5/BX46

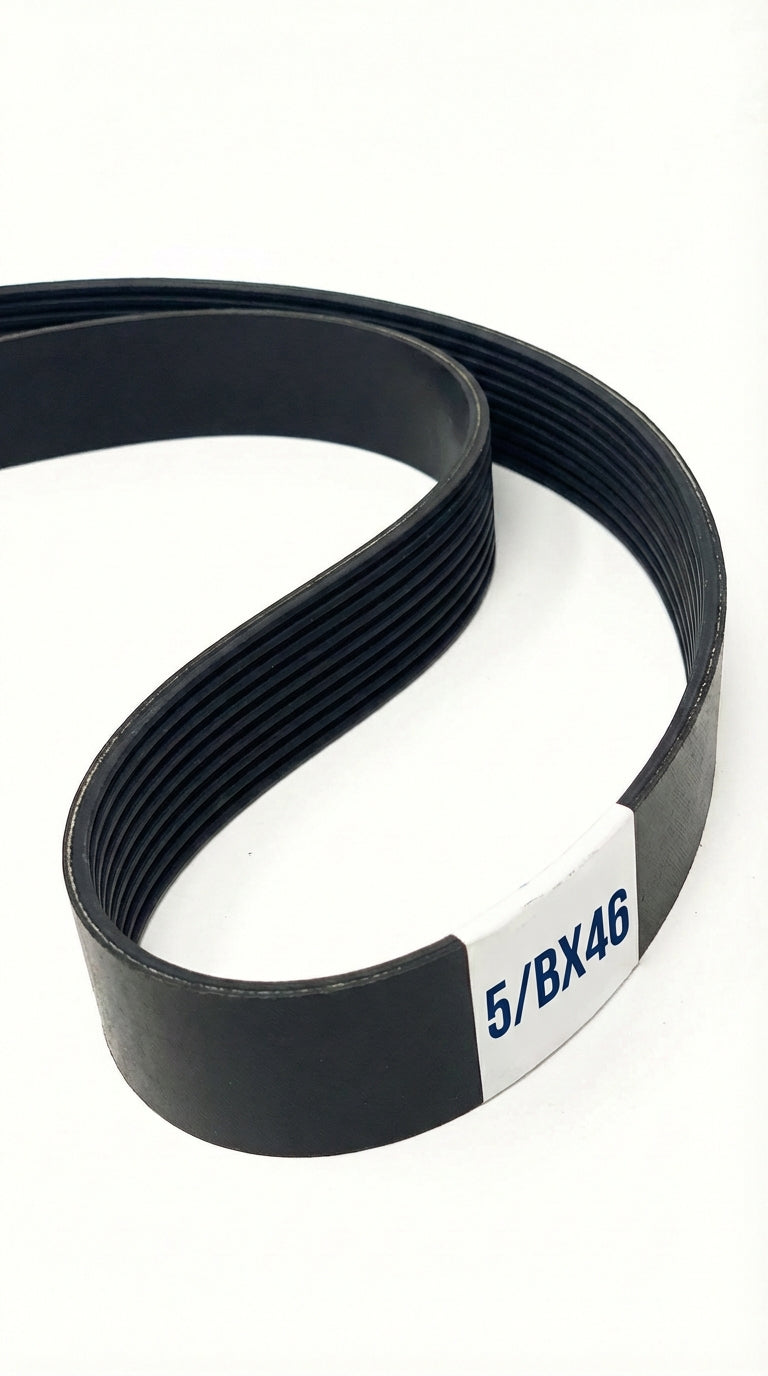

The 5/BX46 is a factory-joined 5-band BX banded belt assembly measuring 3.4" wide x 47.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216519

$115.46

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications
Part Number 5/BX46
Top Width 3.4 in / 86.36 mm
Belt Depth 0.4375 in / 11.11 mm
Inside Length 46.0 in / 1168.4 mm
Outside Length 47.8 in / 1214.1 mm
Effective Length 47.4 in
Min Sheave Diameter 4.0 in / 101.6 mm
Ribs 5
Cogged Yes
