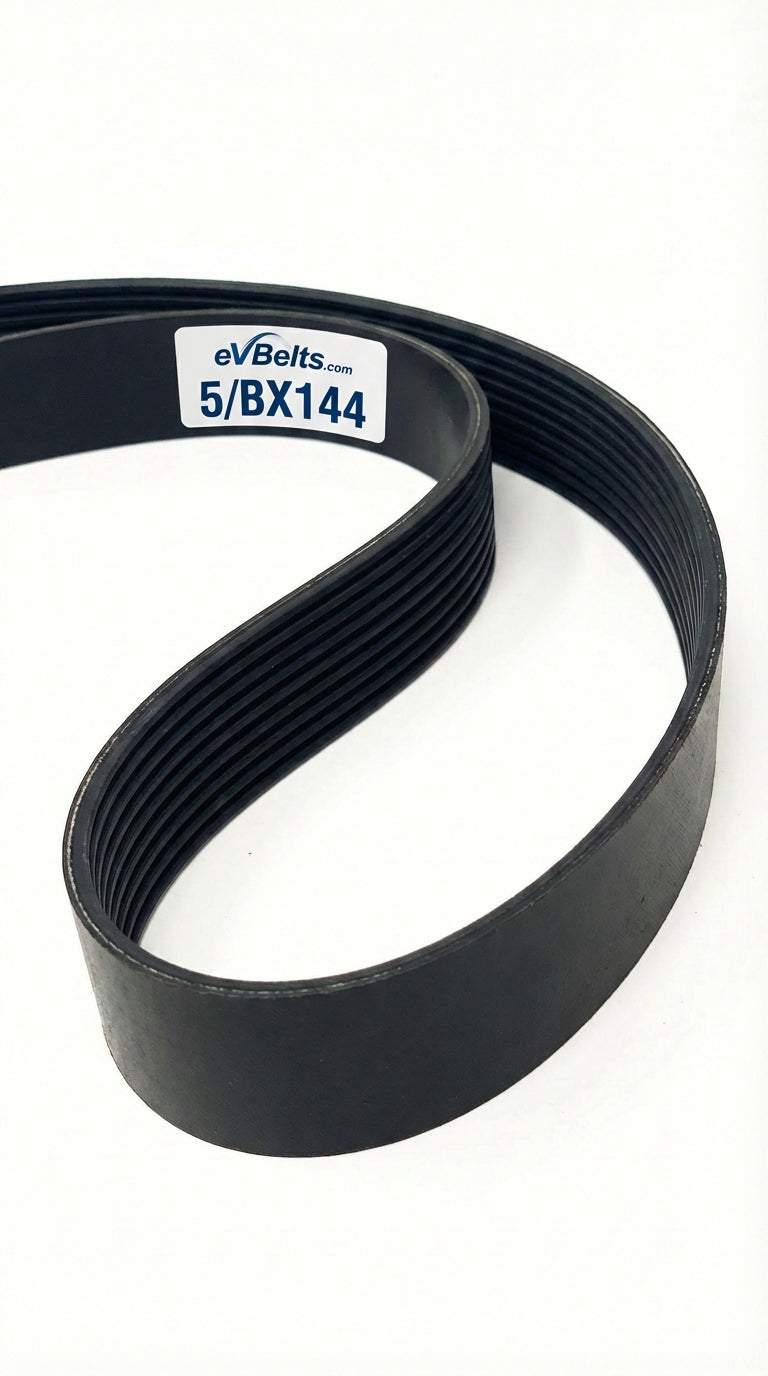

5/BX144

Top Width: 3.4" (86.36mm)
Outside Length: 145.8" (3703.3mm)
Inside Length: 144" (3657.6mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 5-Band Set

The 5/BX144 is a factory-joined 5-band BX banded belt assembly measuring 3.4" wide x 145.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216556

$255.38

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	5/BX144
Top Width	3.4 in / 86.36 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	144.0 in / 3657.6 mm
Outside Length	145.8 in / 3703.3 mm
Effective Length	145.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	5
Cogged	Yes
