5/BX136

Top Width: 3.4" (86.36mm)
Outside Length: 137.8" (3500.1mm)
Inside Length: 136" (3454.4mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 5-Band Set

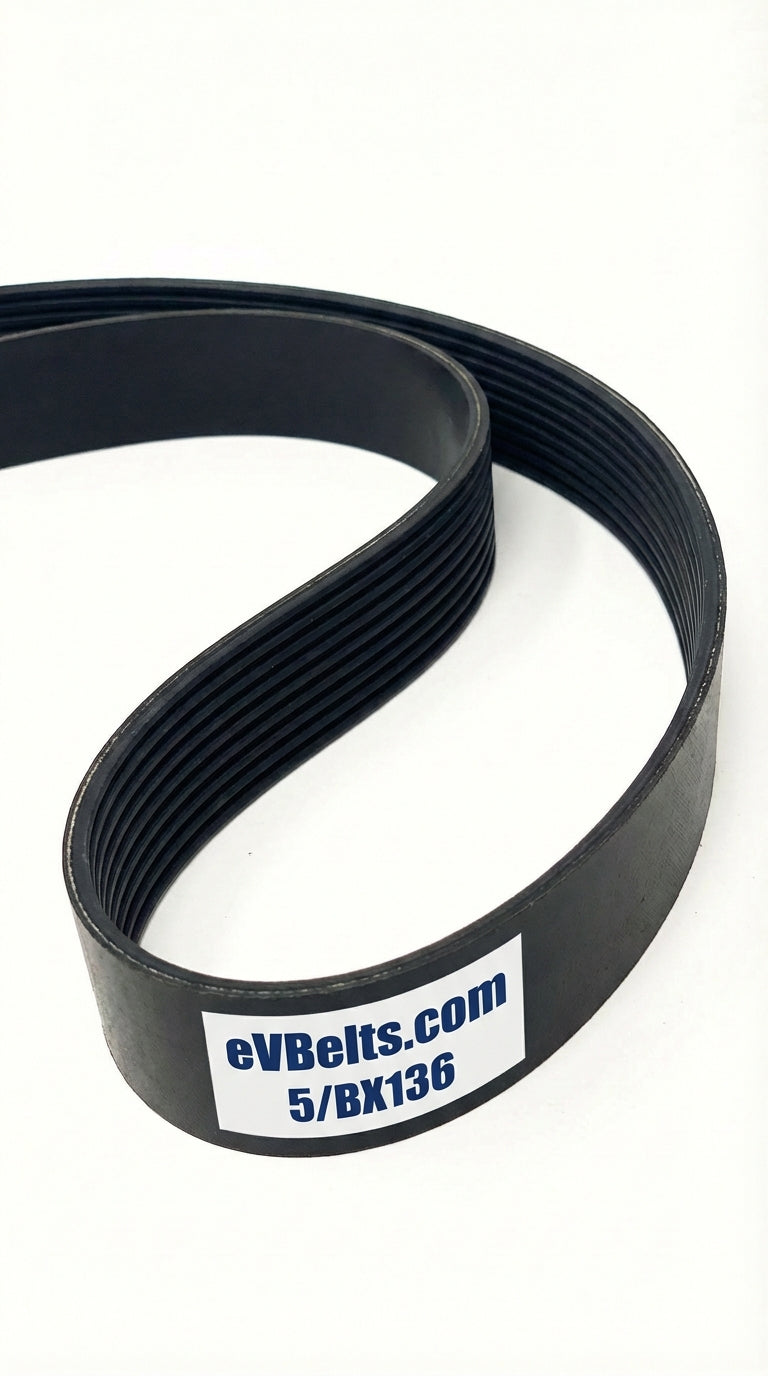

The 5/BX136 is a factory-joined 5-band BX banded belt assembly measuring 3.4" wide x 137.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216553

$241.28

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	5/BX136
Top Width	3.4 in / 86.36 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	136.0 in / 3454.4 mm
Outside Length	137.8 in / 3500.1 mm
Effective Length	137.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	5
Cogged	Yes
