4/BX87

Top Width: 2.714" (68.94mm)
Outside Length: 88.8" (2255.5mm)
Inside Length: 87" (2209.8mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 4-Band Set

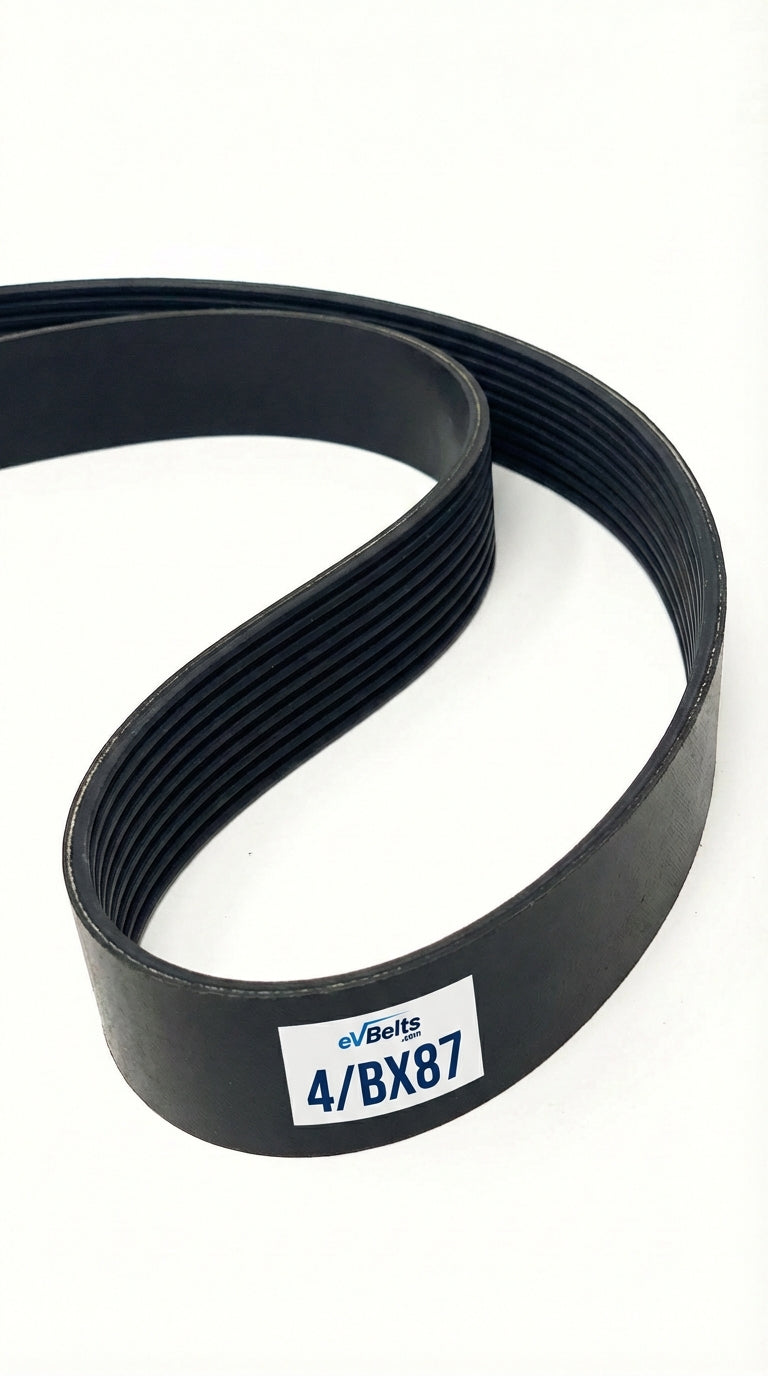

The 4/BX87 is a factory-joined 4-band BX banded belt assembly measuring 2.714" wide x 88.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216503

$124.21

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	4/BX87
Top Width	2.714 in / 68.94 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	87.0 in / 2209.8 mm
Outside Length	88.8 in / 2255.5 mm
Effective Length	88.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	4
Cogged	Yes
