4/BX81

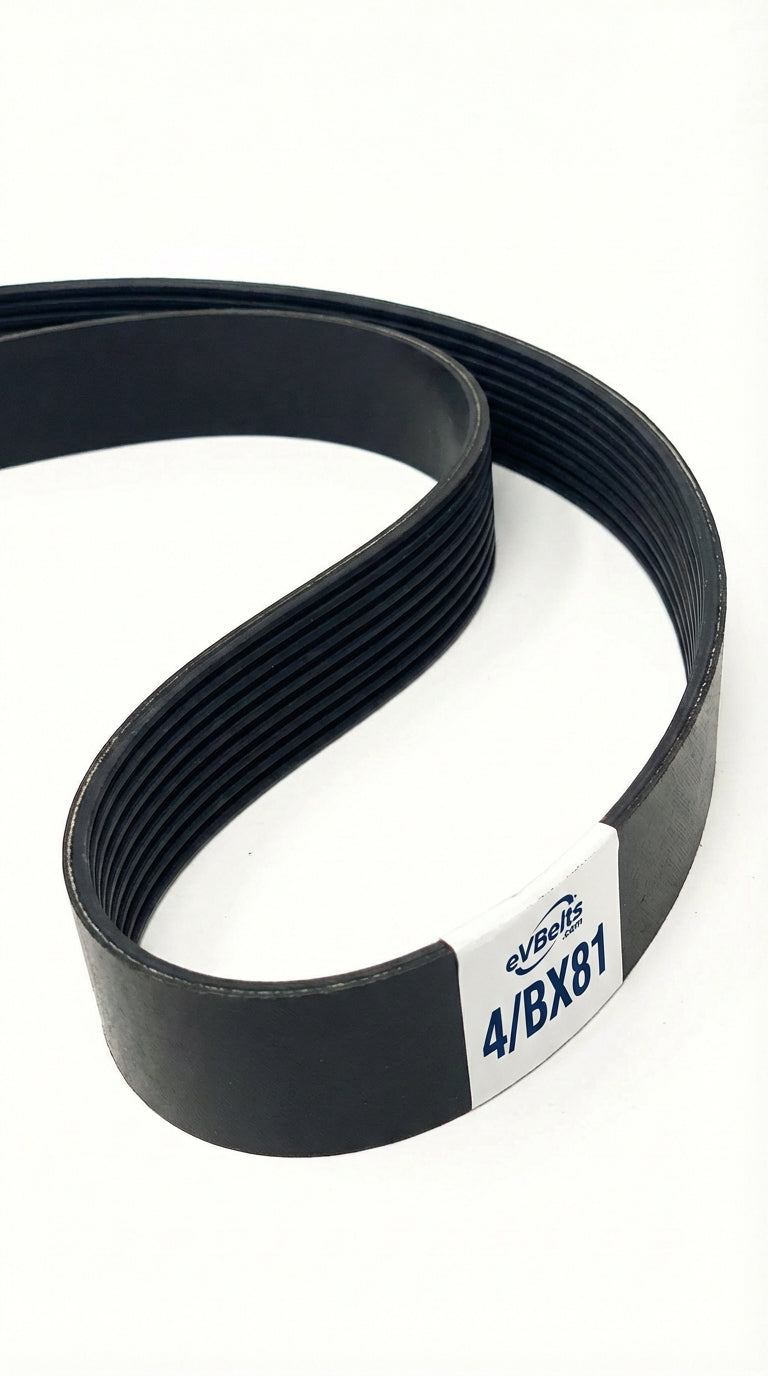

The 4/BX81 is a factory-joined 4-band BX banded belt assembly measuring 2.714" wide x 82.8" long, offering improved flexibility around smaller pulleys.
SKU: 1216499
$110.71
11071
0 In Stock
Estimated delivery between June 18 and June 20.
Technical Specifications
| Part Number | 4/BX81 |
| Top Width | 2.714 in / 68.94 mm |
| Belt Depth | 0.4375 in / 11.11 mm |
| Inside Length | 81.0 in / 2057.4 mm |
| Outside Length | 82.8 in / 2103.1 mm |
| Effective Length | 82.4 in |
| Min Sheave Diameter | 4.0 in / 101.6 mm |
| Ribs | 4 |
| Cogged | Yes |
