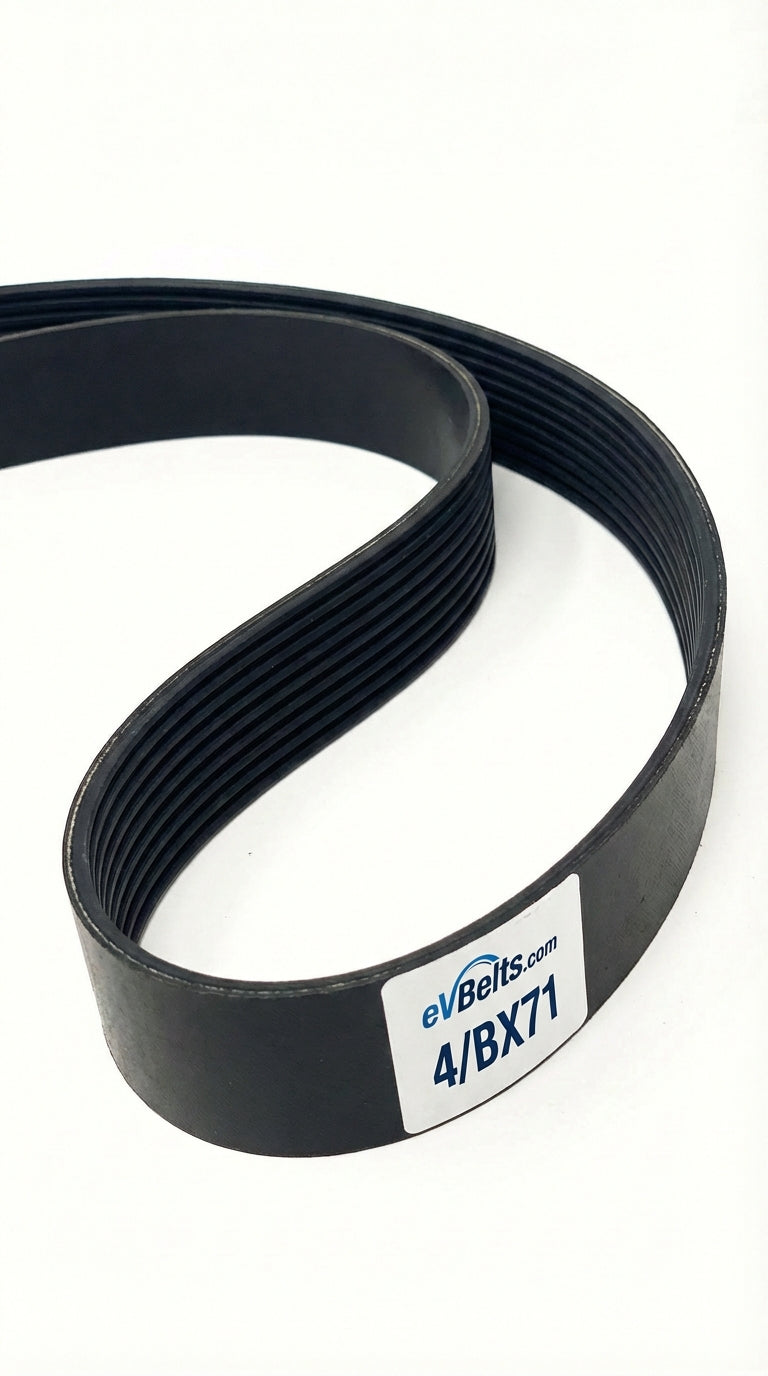

4/BX71

Top Width: 2.714" (68.94mm)
Outside Length: 72.8" (1849.1mm)
Inside Length: 71" (1803.4mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 4-Band Set

The 4/BX71 is a factory-joined 4-band BX banded belt assembly measuring 2.714" wide x 72.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216494

$116.82

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	4/BX71
Top Width	2.714 in / 68.94 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	71.0 in / 1803.4 mm
Outside Length	72.8 in / 1849.1 mm
Effective Length	72.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	4
Cogged	Yes
