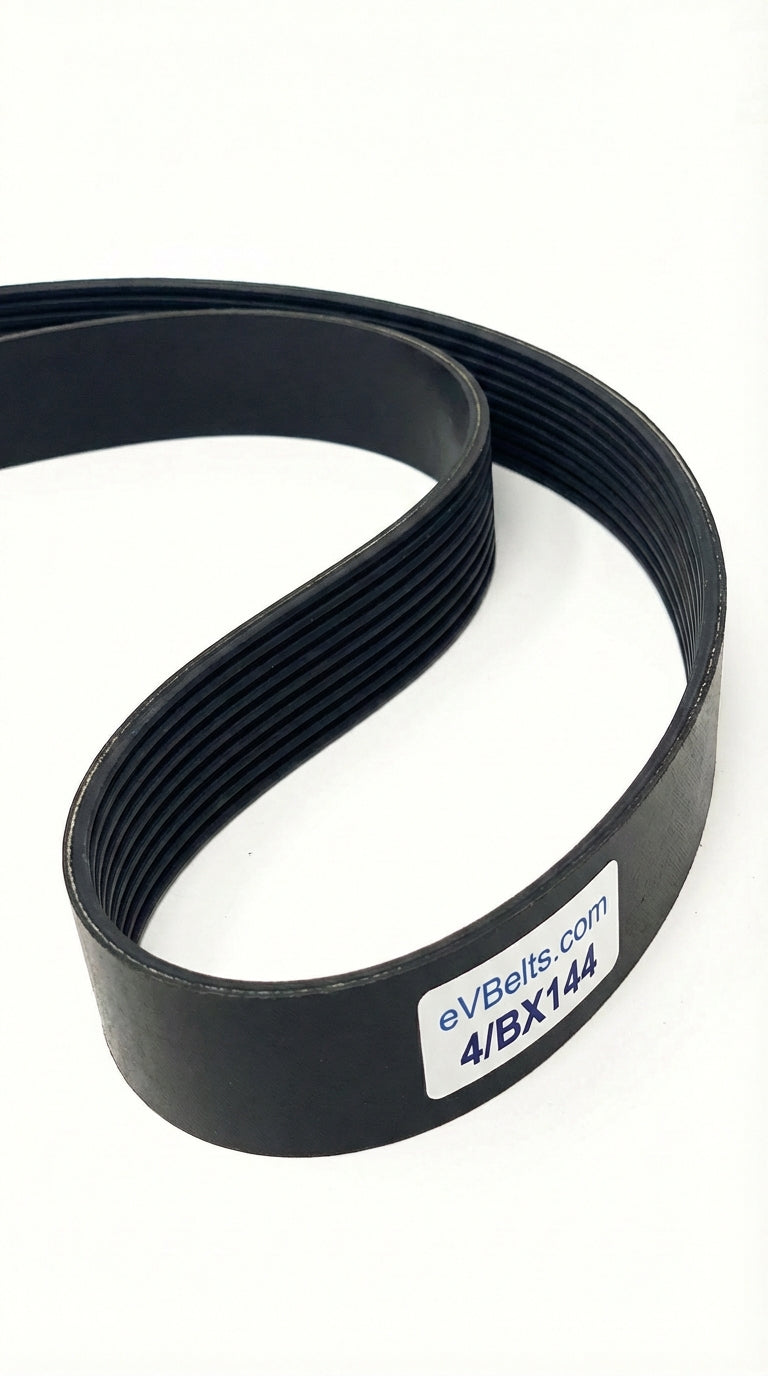

4/BX144

Top Width: 2.714" (68.94mm)
Outside Length: 145.8" (3703.3mm)
Inside Length: 144" (3657.6mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 4-Band Set

The 4/BX144 is a factory-joined 4-band BX banded belt assembly measuring 2.714" wide x 145.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216516

$204.29

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	4/BX144
Top Width	2.714 in / 68.94 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	144.0 in / 3657.6 mm
Outside Length	145.8 in / 3703.3 mm
Effective Length	145.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	4
Cogged	Yes
