4/BX136

Top Width: 2.714" (68.94mm)
Outside Length: 137.8" (3500.1mm)
Inside Length: 136" (3454.4mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 4-Band Set

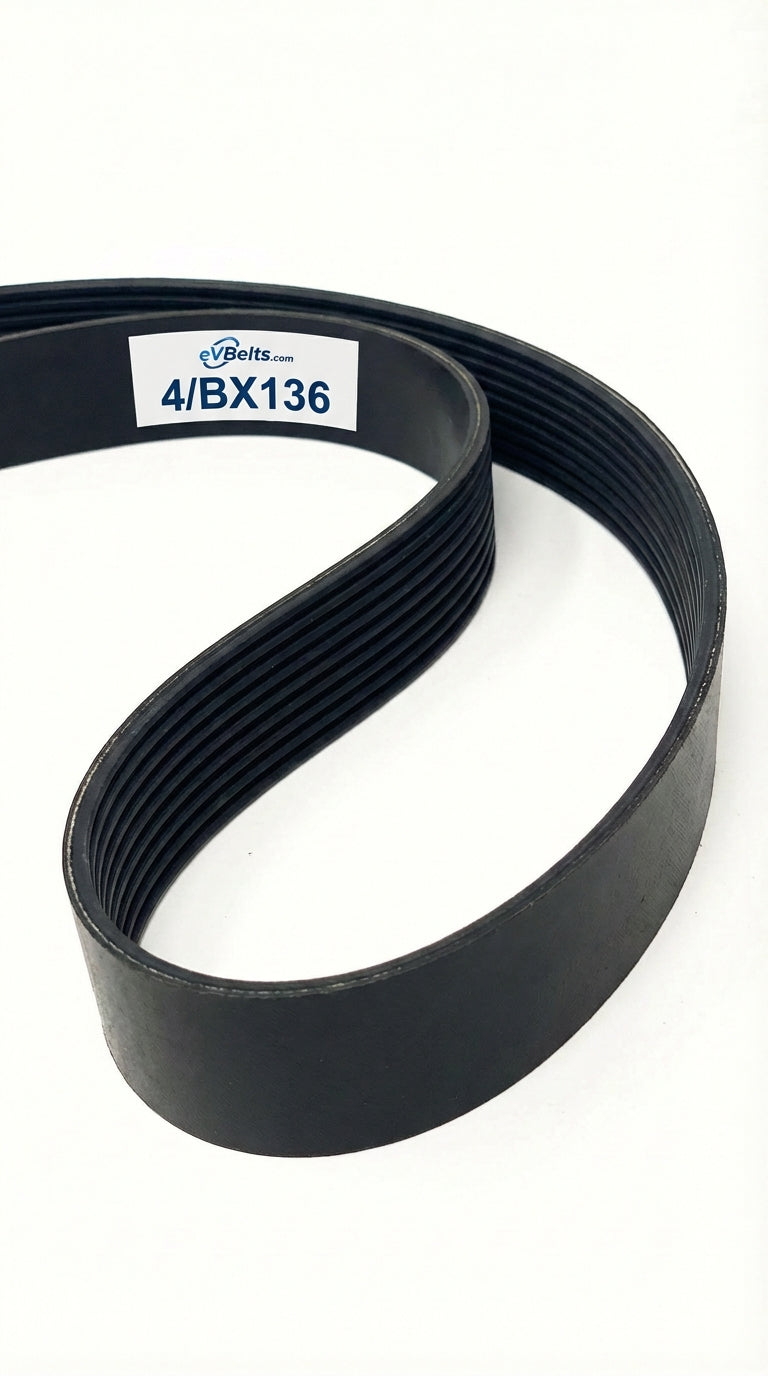

The 4/BX136 is a factory-joined 4-band BX banded belt assembly measuring 2.714" wide x 137.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216514

$193.02

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	4/BX136
Top Width	2.714 in / 68.94 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	136.0 in / 3454.4 mm
Outside Length	137.8 in / 3500.1 mm
Effective Length	137.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	4
Cogged	Yes
