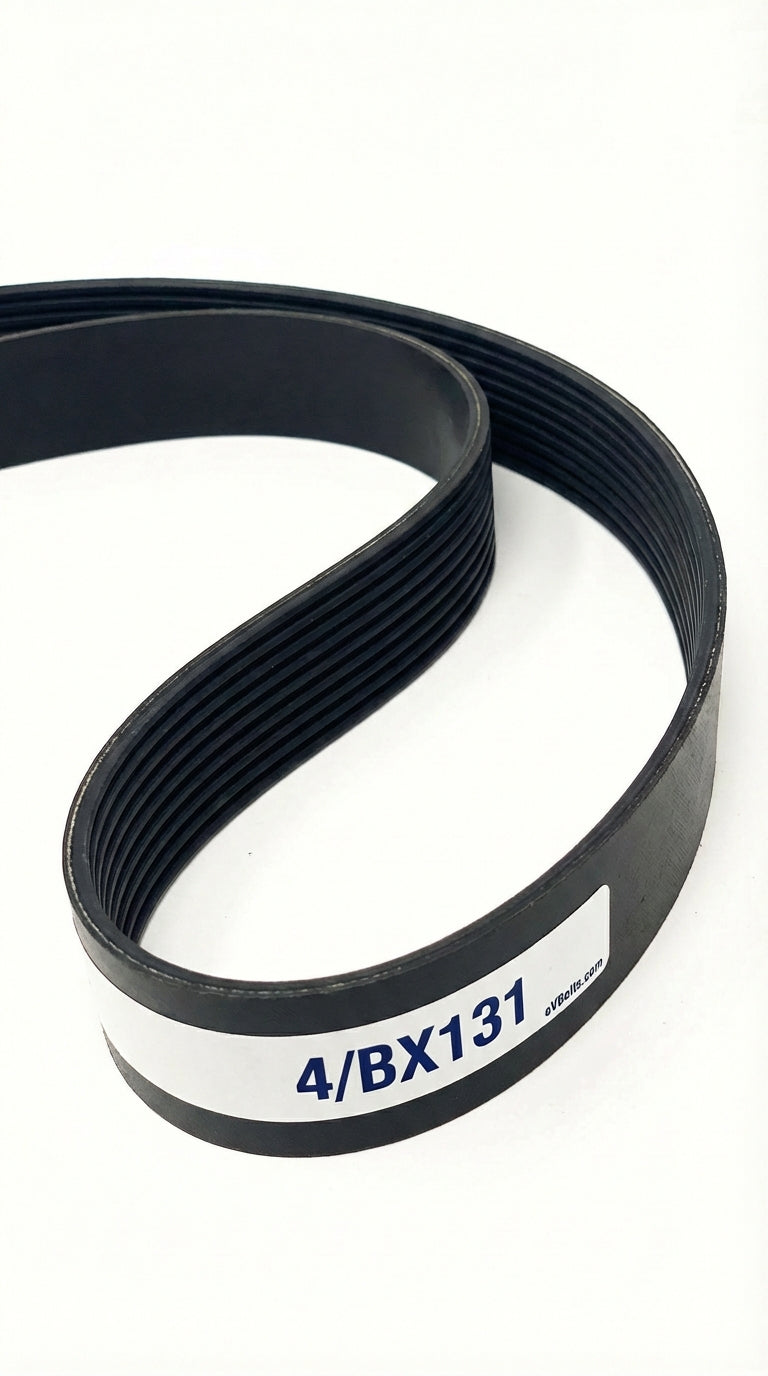

4/BX131

Top Width: 2.714" (68.94mm)
Outside Length: 132.8" (3373.1mm)
Inside Length: 131" (3327.4mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 4-Band Set

The 4/BX131 is a factory-joined 4-band BX banded belt assembly measuring 2.714" wide x 132.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216513

$213.93

0 In Stock

In stock and ready to ship

Estimated delivery between June 19 and June 21.

Technical Specifications

Part Number	4/BX131
Top Width	2.714 in / 68.94 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	131.0 in / 3327.4 mm
Outside Length	132.8 in / 3373.1 mm
Effective Length	132.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	4
Cogged	Yes
