2/BX75

Top Width: 1.342" (34.09mm)
Outside Length: 76.8" (1950.7mm)
Inside Length: 75" (1905mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 2-Band Set

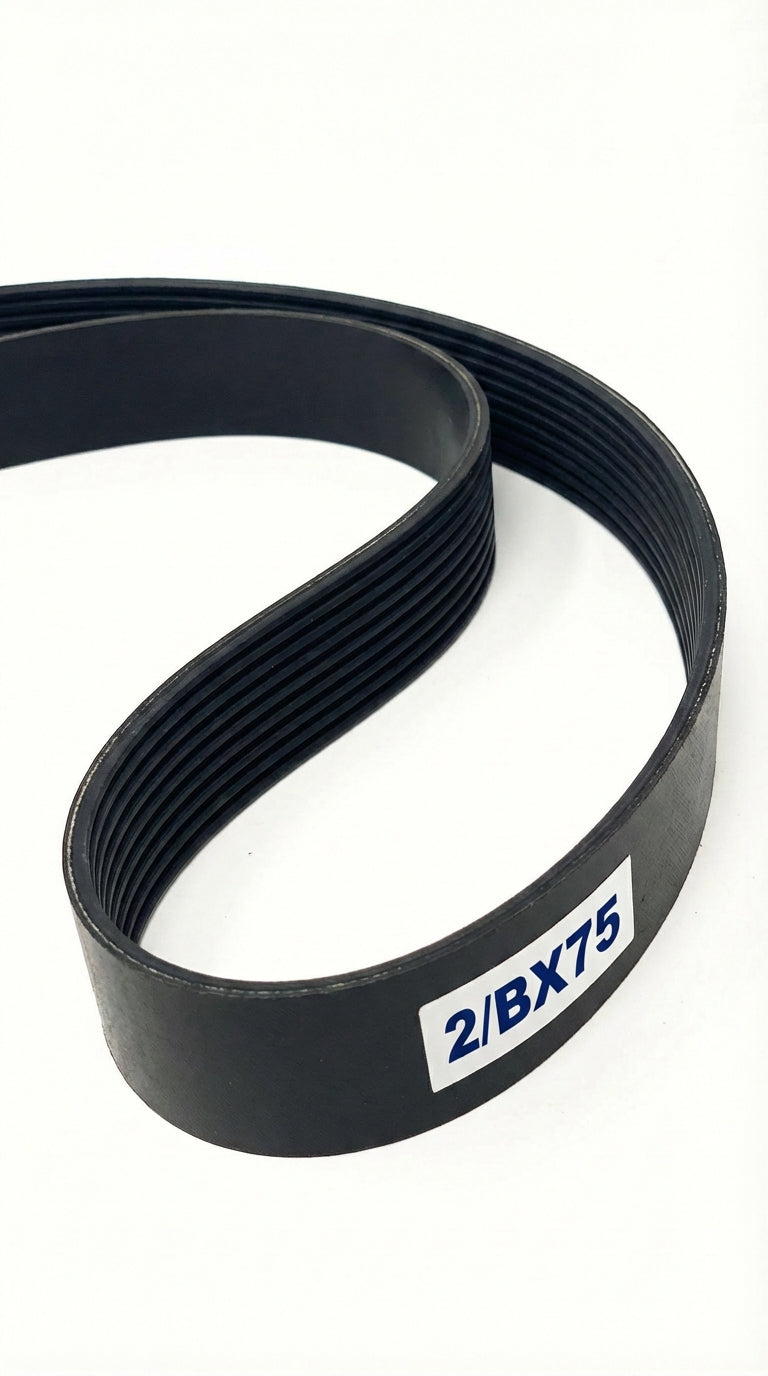

The 2/BX75 is a factory-joined 2-band BX banded belt assembly measuring 1.342" wide x 76.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216416

$51.05

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	2/BX75
Top Width	1.342 in / 34.09 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	75.0 in / 1905.0 mm
Outside Length	76.8 in / 1950.7 mm
Effective Length	76.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	2
Cogged	Yes
