2/BX66

Top Width: 1.342" (34.09mm)
Outside Length: 67.8" (1722.1mm)
Inside Length: 66" (1676.4mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 2-Band Set

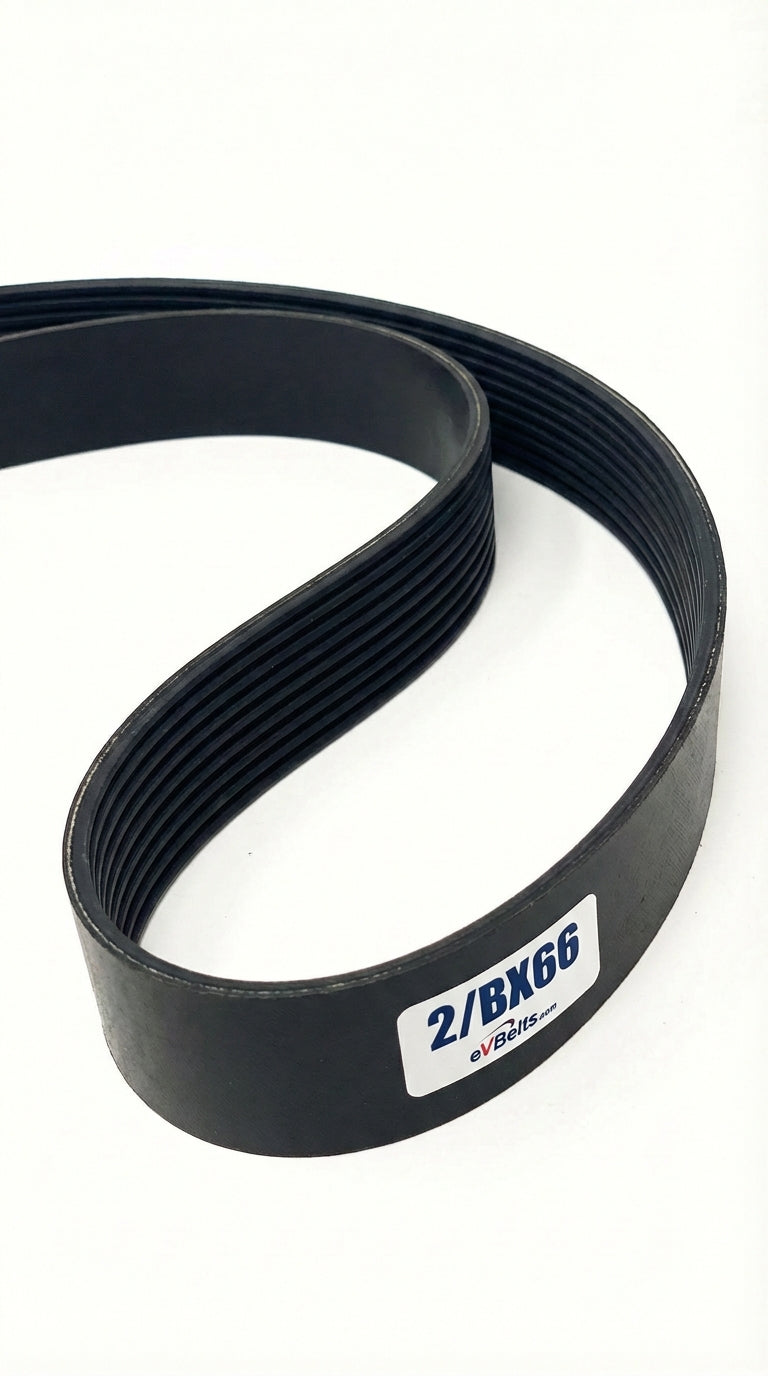

The 2/BX66 is a factory-joined 2-band BX banded belt assembly measuring 1.342" wide x 67.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216410

$45.93

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	2/BX66
Top Width	1.342 in / 34.09 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	66.0 in / 1676.4 mm
Outside Length	67.8 in / 1722.1 mm
Effective Length	67.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	2
Cogged	Yes
