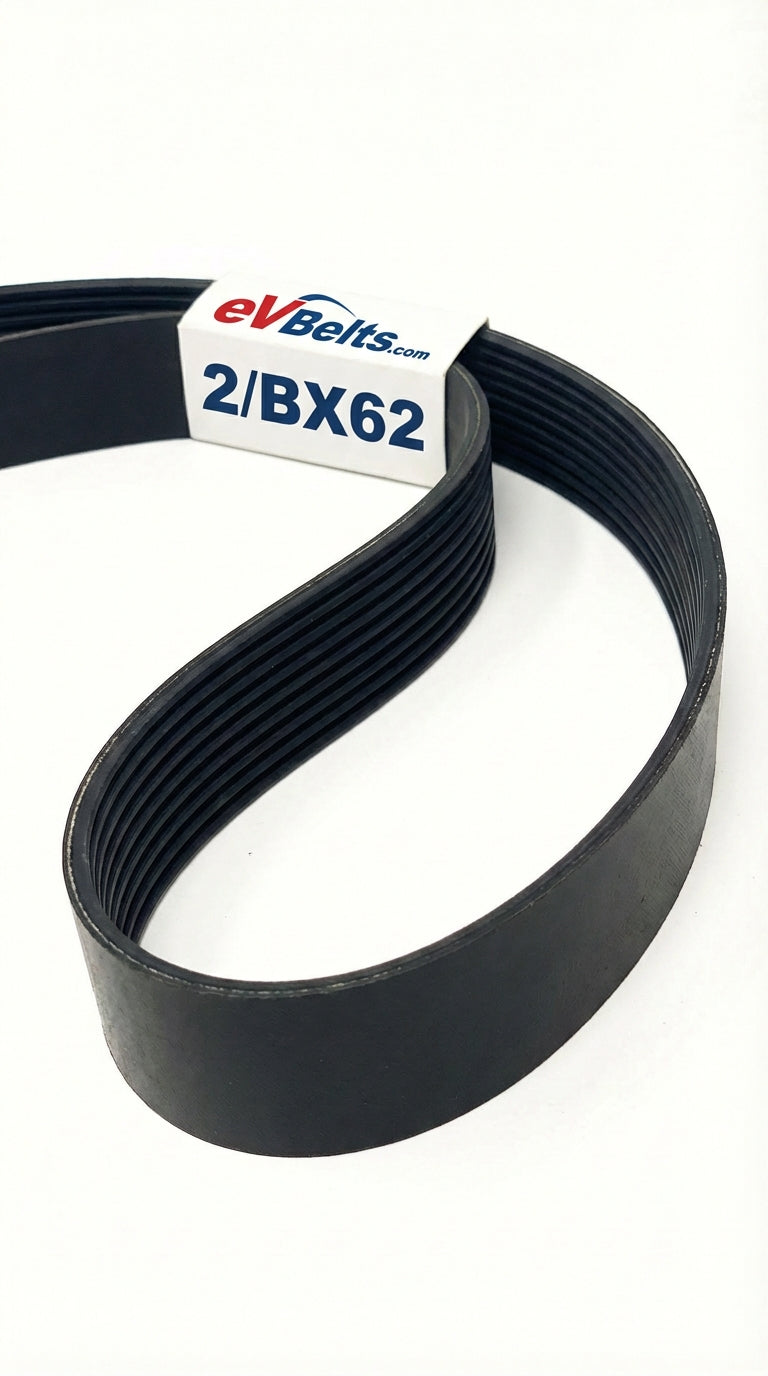

2/BX62

Top Width: 1.342" (34.09mm)
Outside Length: 63.8" (1620.5mm)
Inside Length: 62" (1574.8mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 2-Band Set

The 2/BX62 is a factory-joined 2-band BX banded belt assembly measuring 1.342" wide x 63.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216406

$43.67

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	2/BX62
Top Width	1.342 in / 34.09 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	62.0 in / 1574.8 mm
Outside Length	63.8 in / 1620.5 mm
Effective Length	63.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	2
Cogged	Yes
