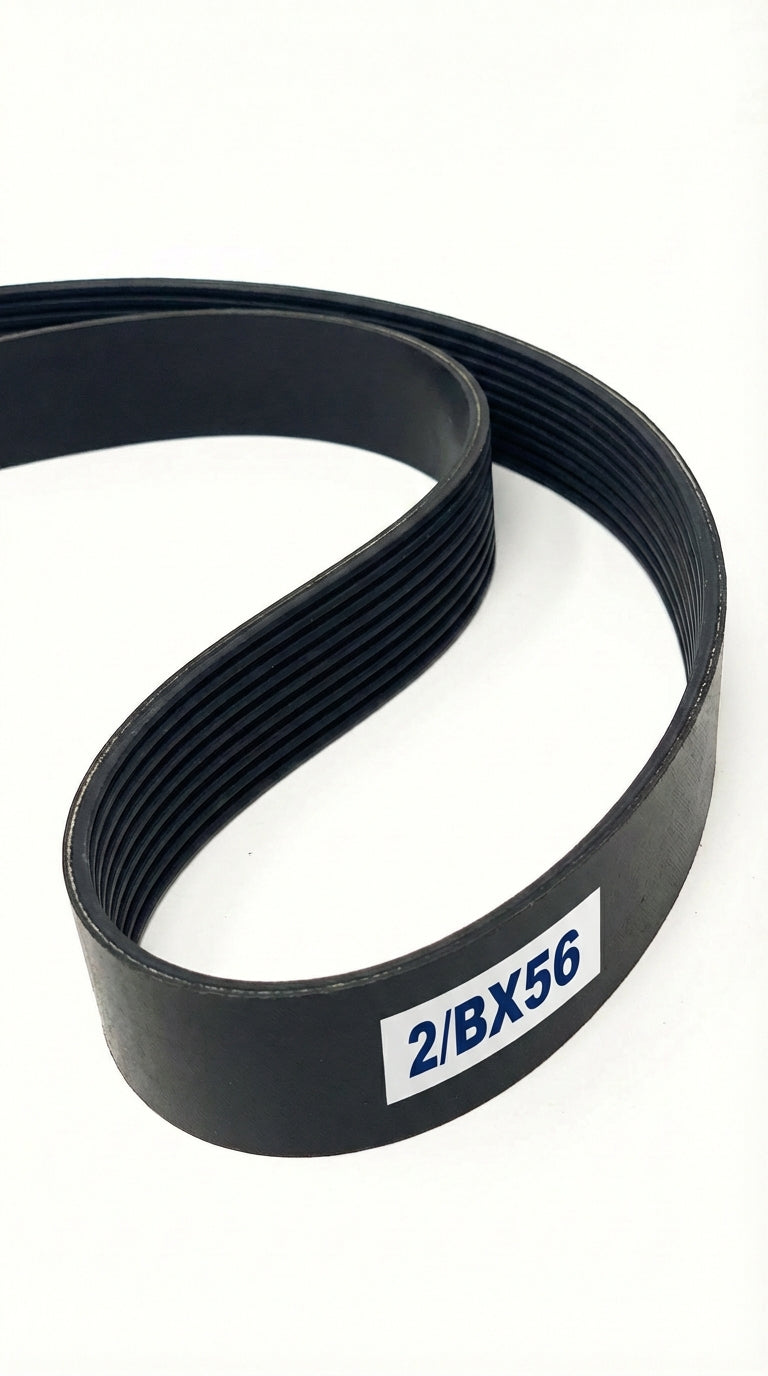

2/BX56

Top Width: 1.342" (34.09mm)
Outside Length: 57.8" (1468.1mm)
Inside Length: 56" (1422.4mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 2-Band Set

The 2/BX56 is a factory-joined 2-band BX banded belt assembly measuring 1.342" wide x 57.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216403

$41.42

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	2/BX56
Top Width	1.342 in / 34.09 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	56.0 in / 1422.4 mm
Outside Length	57.8 in / 1468.1 mm
Effective Length	57.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	2
Cogged	Yes
