12/BX51

Top Width: 8.202" (208.33mm)
Outside Length: 52.8" (1341.1mm)
Inside Length: 51" (1295.4mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 12-Band Set

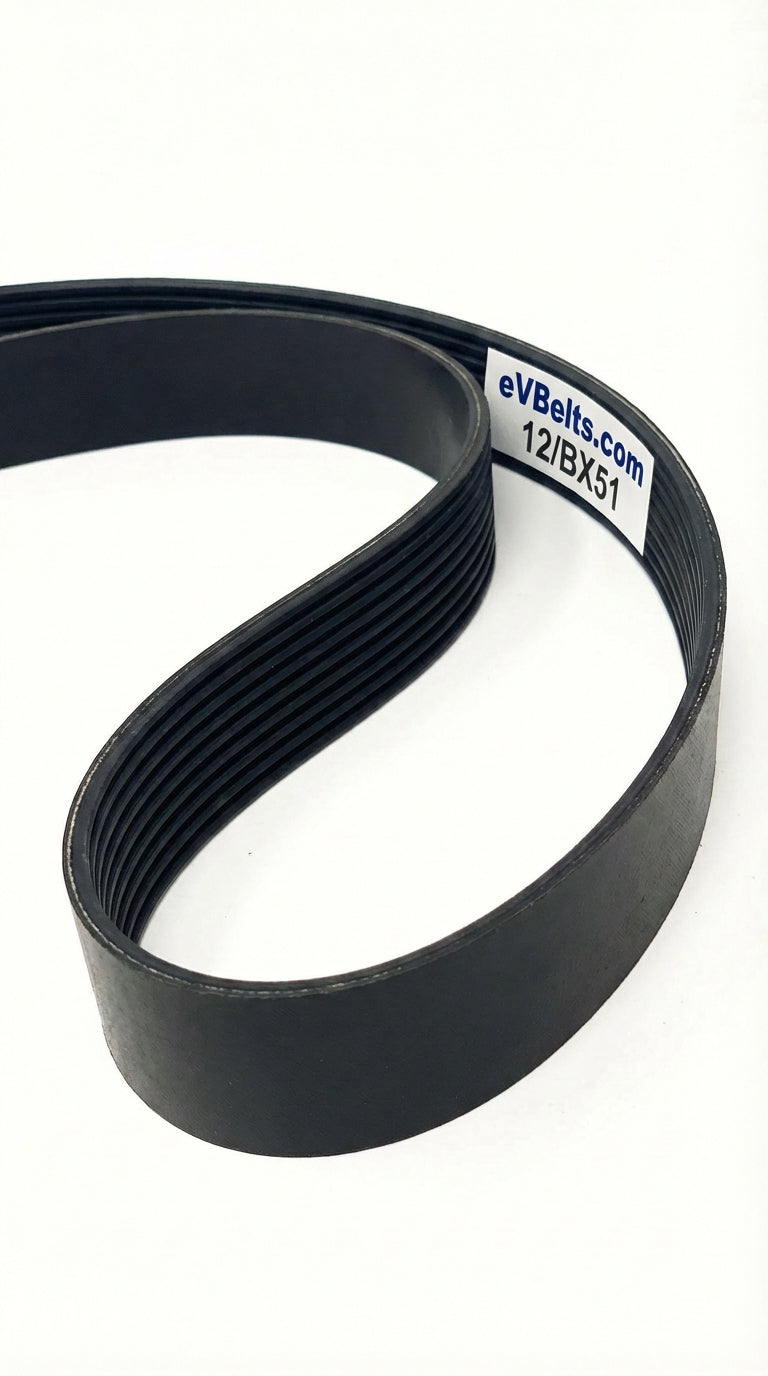

The 12/BX51 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 52.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216360

$300.27

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	12/BX51
Top Width	8.202 in / 208.33 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	51.0 in / 1295.4 mm
Outside Length	52.8 in / 1341.1 mm
Effective Length	52.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	12
Cogged	Yes
