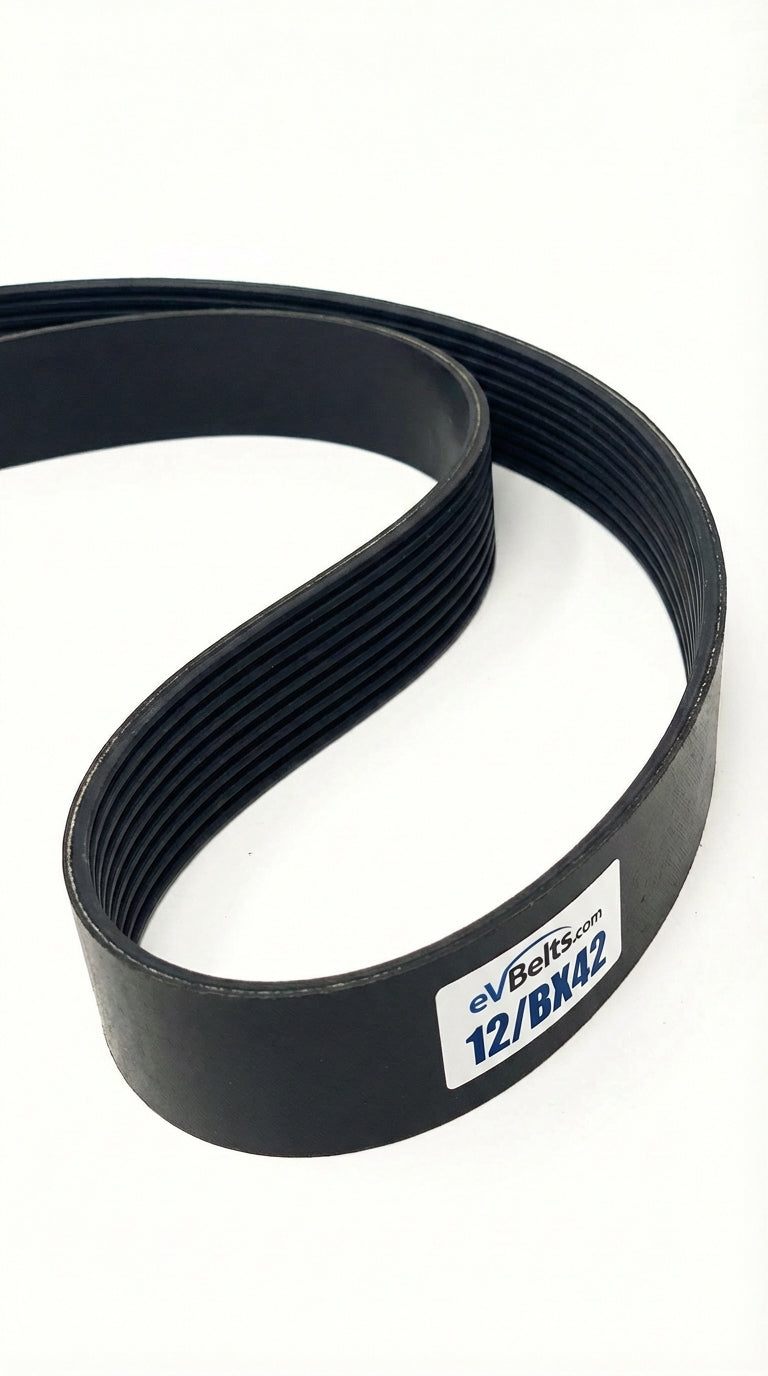

12/BX42

Top Width: 8.202" (208.33mm)
Outside Length: 43.8" (1112.5mm)
Inside Length: 42" (1066.8mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 12-Band Set

The 12/BX42 is a factory-joined 12-band BX banded belt assembly measuring 8.202" wide x 43.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216358

$257.47

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	12/BX42
Top Width	8.202 in / 208.33 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	42.0 in / 1066.8 mm
Outside Length	43.8 in / 1112.5 mm
Effective Length	43.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	12
Cogged	Yes
