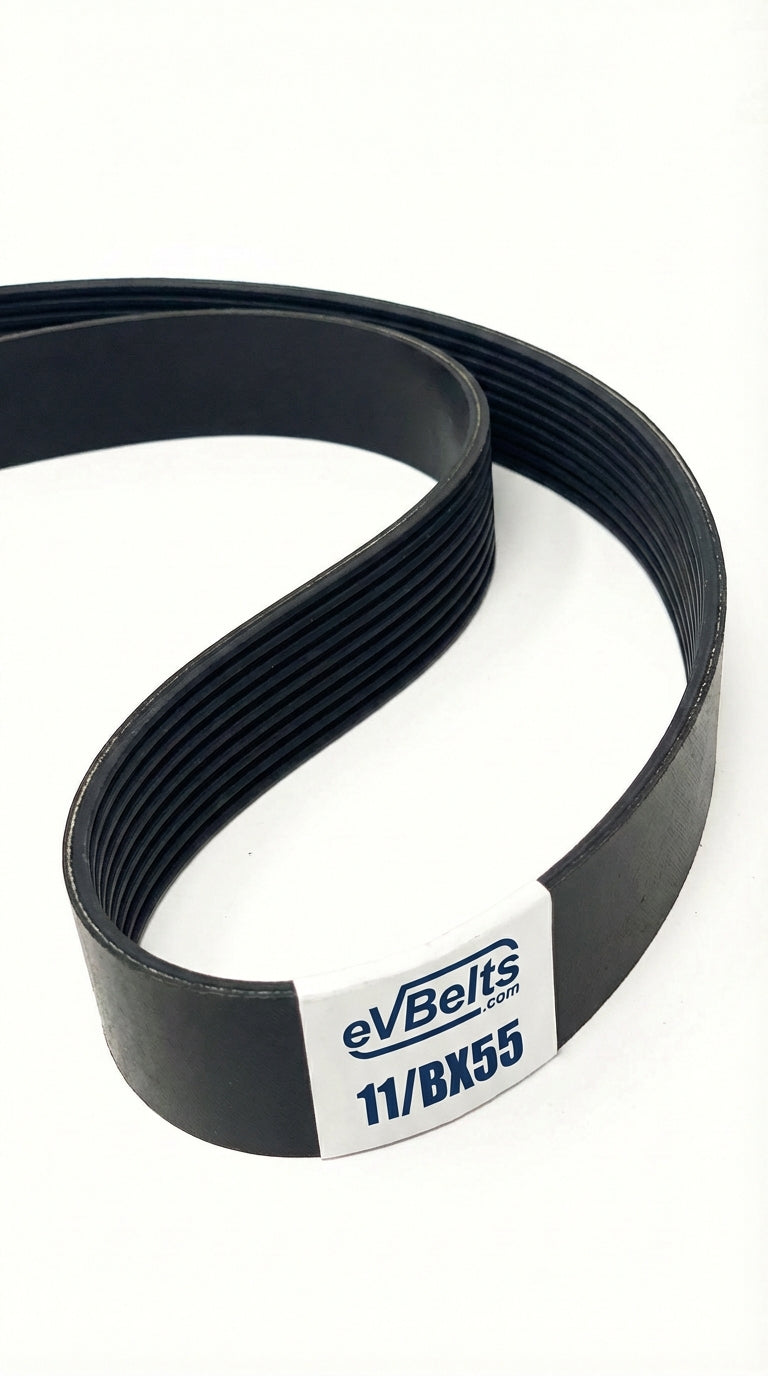

11/BX55

Top Width: 7.516" (190.91mm)
Outside Length: 56.8" (1442.7mm)
Inside Length: 55" (1397mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 11-Band Set

The 11/BX55 is a factory-joined 11-band BX banded belt assembly measuring 7.516" wide x 56.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216322

$285.18

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	11/BX55
Top Width	7.516 in / 190.91 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	55.0 in / 1397.0 mm
Outside Length	56.8 in / 1442.7 mm
Effective Length	56.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	11
Cogged	Yes
