11/BX46

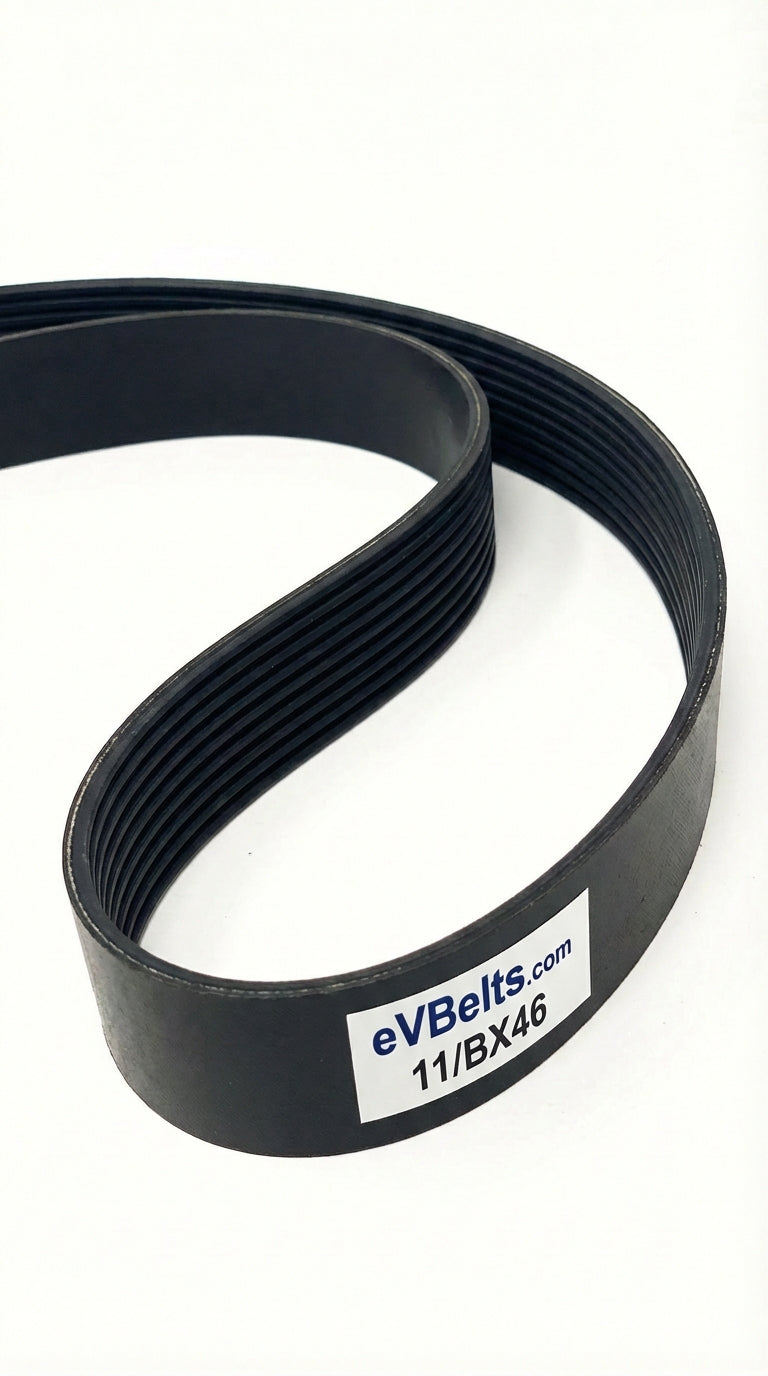

The 11/BX46 is a factory-joined 11-band BX banded belt assembly measuring 7.516" wide x 47.8" long, offering improved flexibility around smaller pulleys.
SKU: 1216320
$255.76
25576
0 In Stock
Estimated delivery between June 18 and June 20.
Technical Specifications
| Part Number | 11/BX46 |
| Top Width | 7.516 in / 190.91 mm |
| Belt Depth | 0.4375 in / 11.11 mm |
| Inside Length | 46.0 in / 1168.4 mm |
| Outside Length | 47.8 in / 1214.1 mm |
| Effective Length | 47.4 in |
| Min Sheave Diameter | 4.0 in / 101.6 mm |
| Ribs | 11 |
| Cogged | Yes |
