11/BX140

Top Width: 7.516" (190.91mm)
Outside Length: 141.8" (3601.7mm)
Inside Length: 140" (3556mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 11-Band Set

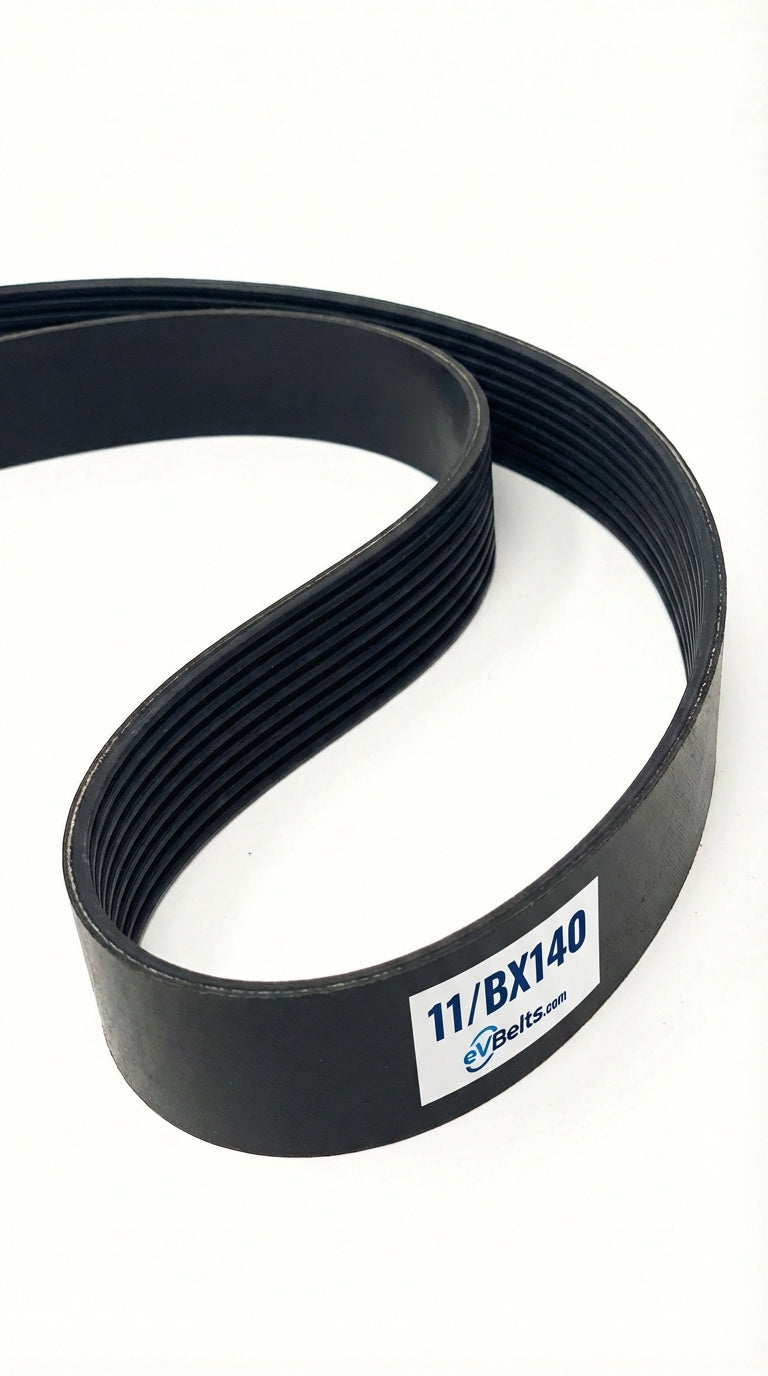

The 11/BX140 is a factory-joined 11-band BX banded belt assembly measuring 7.516" wide x 141.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216355

$660.20

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	11/BX140
Top Width	7.516 in / 190.91 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	140.0 in / 3556.0 mm
Outside Length	141.8 in / 3601.7 mm
Effective Length	141.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	11
Cogged	Yes
