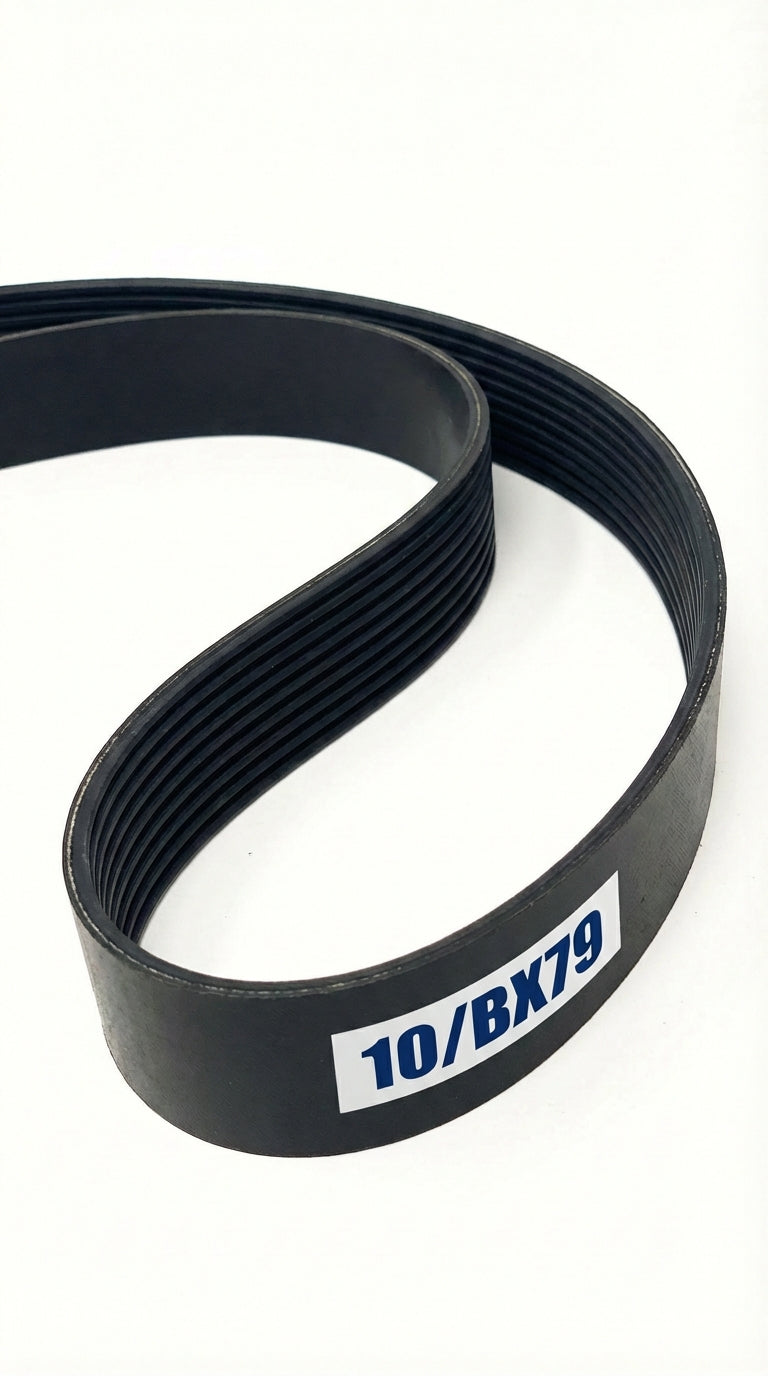

10/BX79
The 10/BX79 is a factory-joined 10-band BX banded belt assembly measuring 6.83" wide x 80.8" long, offering improved flexibility around smaller pulleys.
SKU: 1216299
$339.73
33973
0 In Stock
Estimated delivery between June 16 and June 18.
Technical Specifications
| Part Number | 10/BX79 |
| Top Width | 6.83 in / 173.48 mm |
| Belt Depth | 0.4375 in / 11.11 mm |
| Inside Length | 79.0 in / 2006.6 mm |
| Outside Length | 80.8 in / 2052.3 mm |
| Effective Length | 80.4 in |
| Min Sheave Diameter | 4.0 in / 101.6 mm |
| Ribs | 10 |
| Cogged | Yes |
10/BX79
$339.73
33973
$339.73
33973
