10/BX64

Top Width: 6.83" (173.48mm)
Outside Length: 65.8" (1671.3mm)
Inside Length: 64" (1625.6mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 10-Band Set

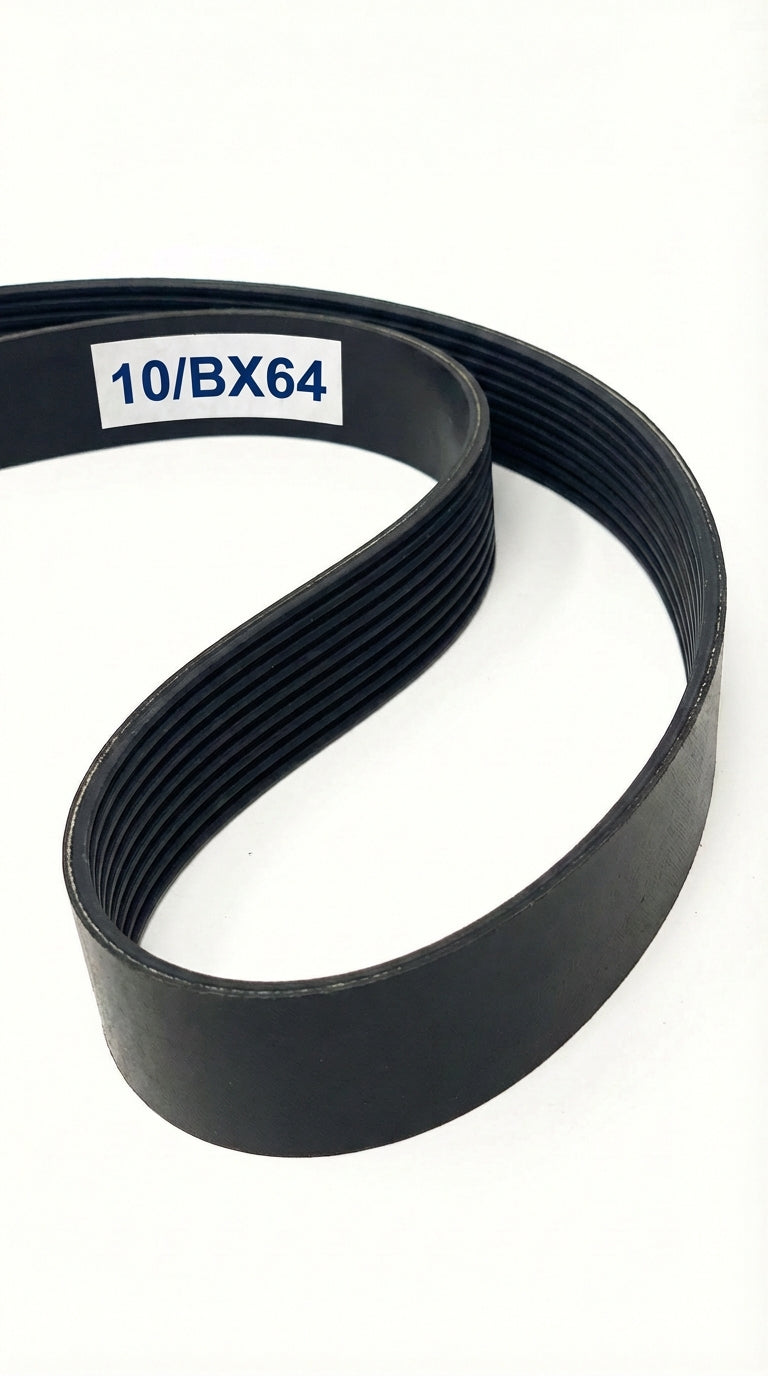

The 10/BX64 is a factory-joined 10-band BX banded belt assembly measuring 6.83" wide x 65.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216288

$282.43

0 In Stock

In stock and ready to ship

Estimated delivery between June 16 and June 18.

Technical Specifications

Part Number	10/BX64
Top Width	6.83 in / 173.48 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	64.0 in / 1625.6 mm
Outside Length	65.8 in / 1671.3 mm
Effective Length	65.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	10
Cogged	Yes
