10/BX60

Top Width: 6.83" (173.48mm)
Outside Length: 61.8" (1569.7mm)
Inside Length: 60" (1524mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 10-Band Set

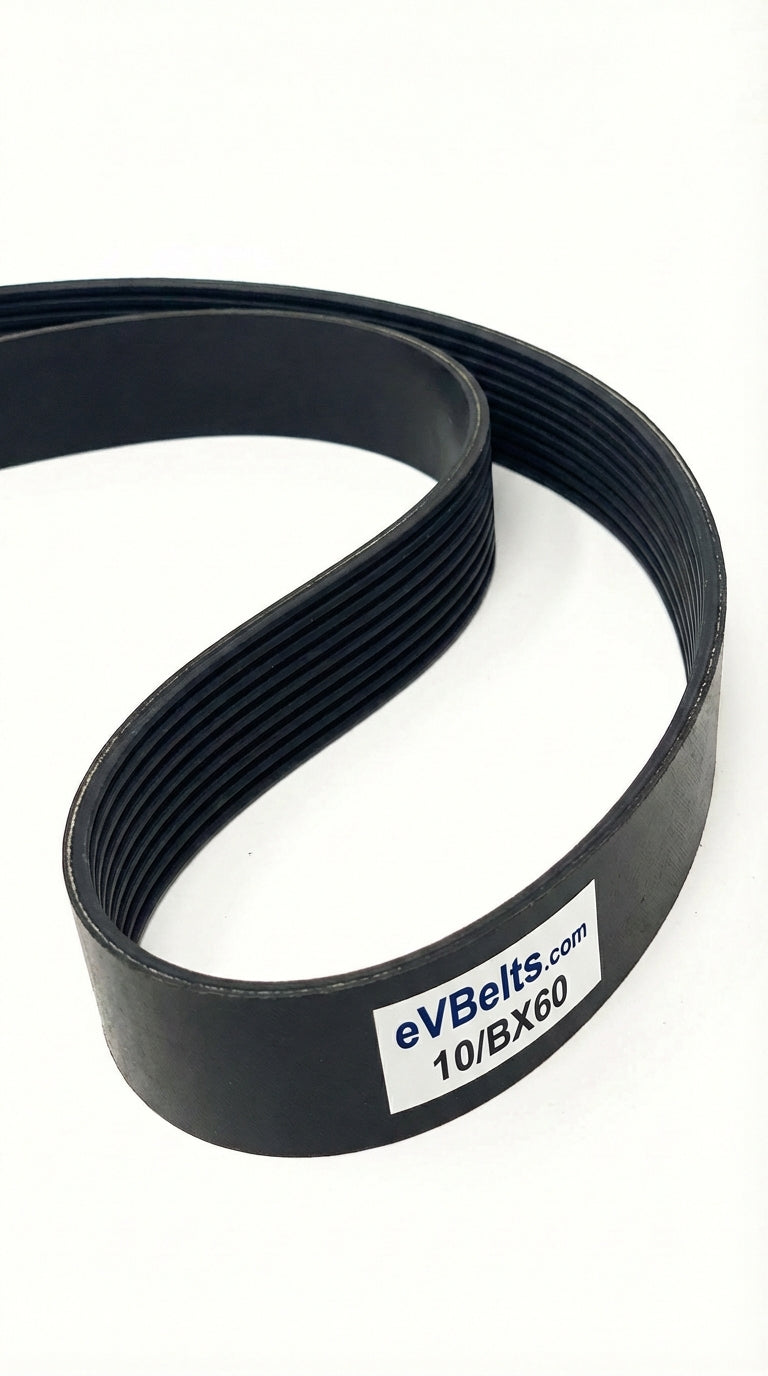

The 10/BX60 is a factory-joined 10-band BX banded belt assembly measuring 6.83" wide x 61.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216284

$268.50

0 In Stock

In stock and ready to ship

Estimated delivery between June 16 and June 18.

Technical Specifications

Part Number	10/BX60
Top Width	6.83 in / 173.48 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	60.0 in / 1524.0 mm
Outside Length	61.8 in / 1569.7 mm
Effective Length	61.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	10
Cogged	Yes
