10/BX53

Top Width: 6.83" (173.48mm)
Outside Length: 54.8" (1391.9mm)
Inside Length: 53" (1346.2mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 10-Band Set

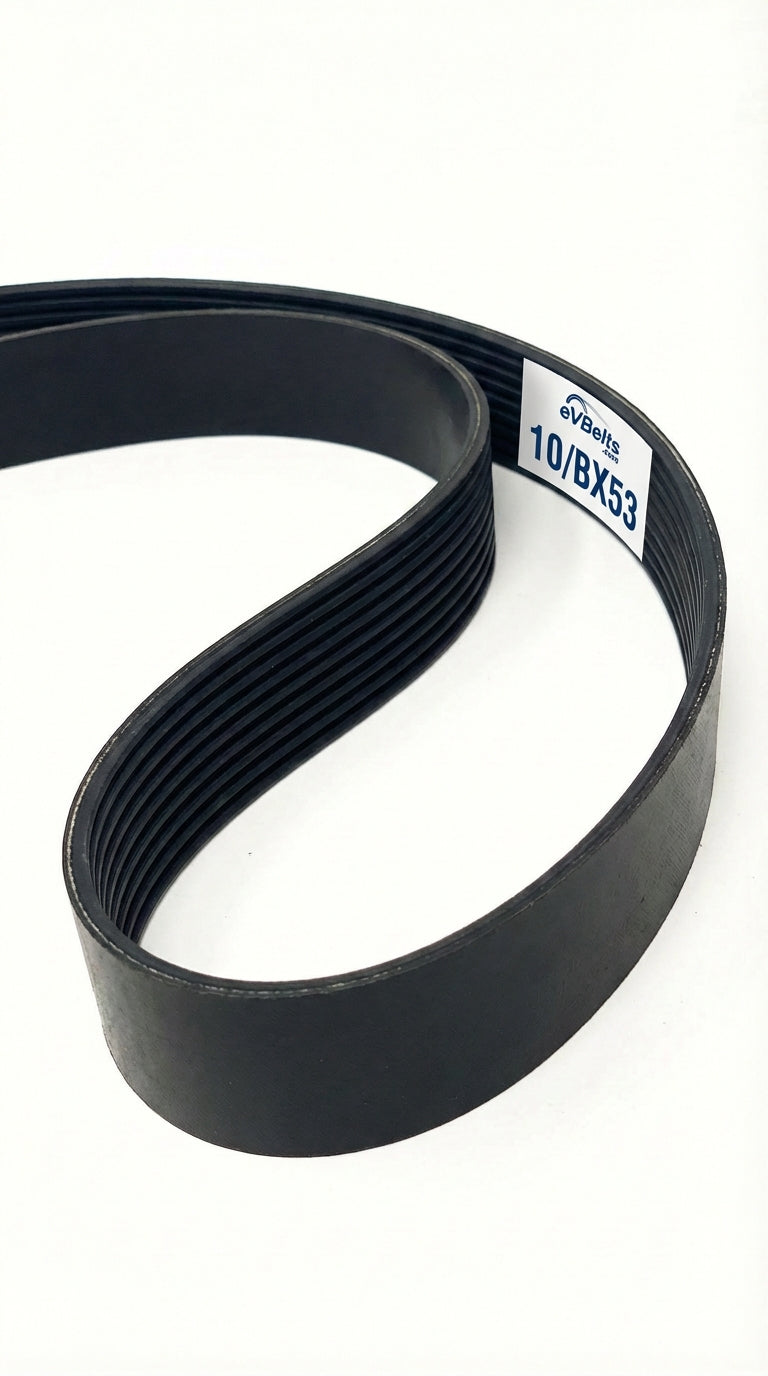

The 10/BX53 is a factory-joined 10-band BX banded belt assembly measuring 6.83" wide x 54.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216280

$254.79

0 In Stock

In stock and ready to ship

Estimated delivery between June 16 and June 18.

Technical Specifications

Part Number	10/BX53
Top Width	6.83 in / 173.48 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	53.0 in / 1346.2 mm
Outside Length	54.8 in / 1391.9 mm
Effective Length	54.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	10
Cogged	Yes
