10/BX112

Top Width: 6.83" (173.48mm)
Outside Length: 113.8" (2890.5mm)
Inside Length: 112" (2844.8mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 10-Band Set

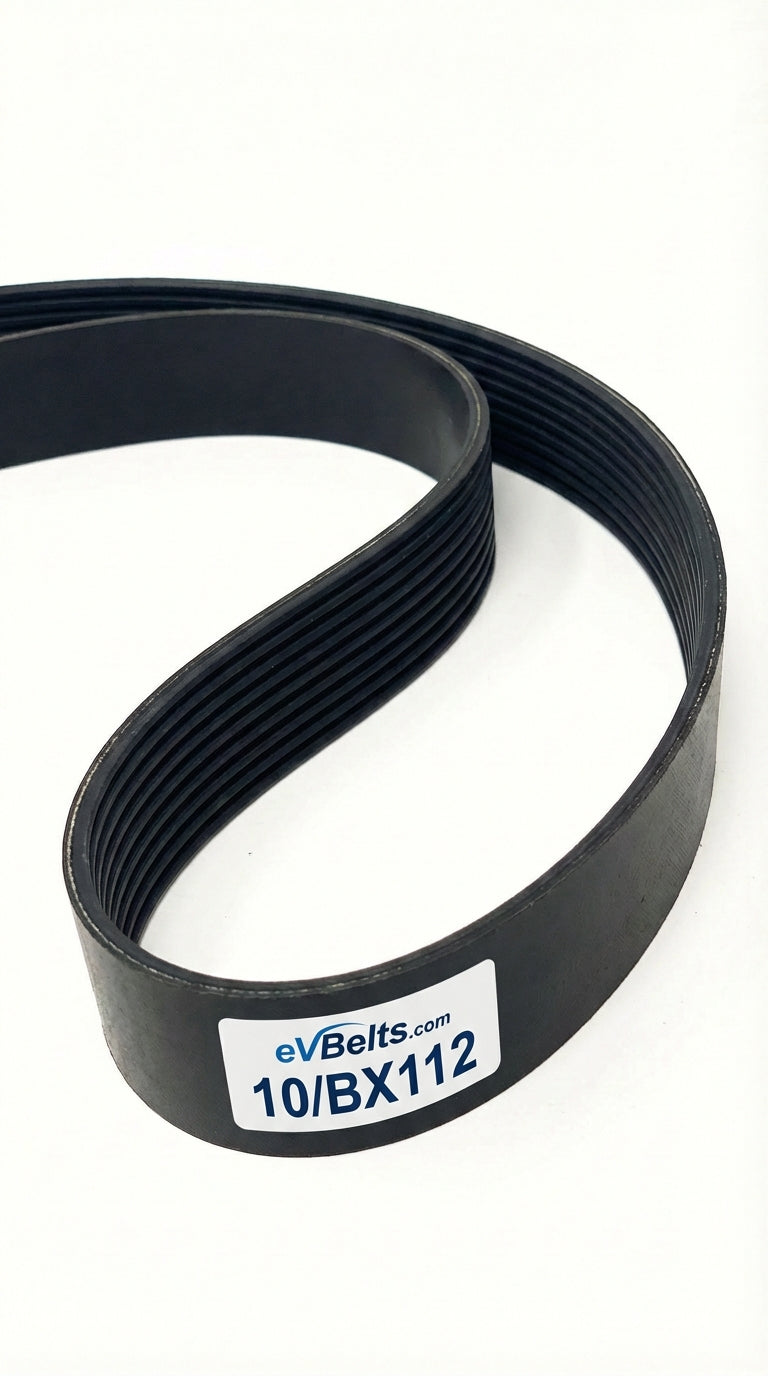

The 10/BX112 is a factory-joined 10-band BX banded belt assembly measuring 6.83" wide x 113.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216310

$482.95

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	10/BX112
Top Width	6.83 in / 173.48 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	112.0 in / 2844.8 mm
Outside Length	113.8 in / 2890.5 mm
Effective Length	113.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	10
Cogged	Yes
