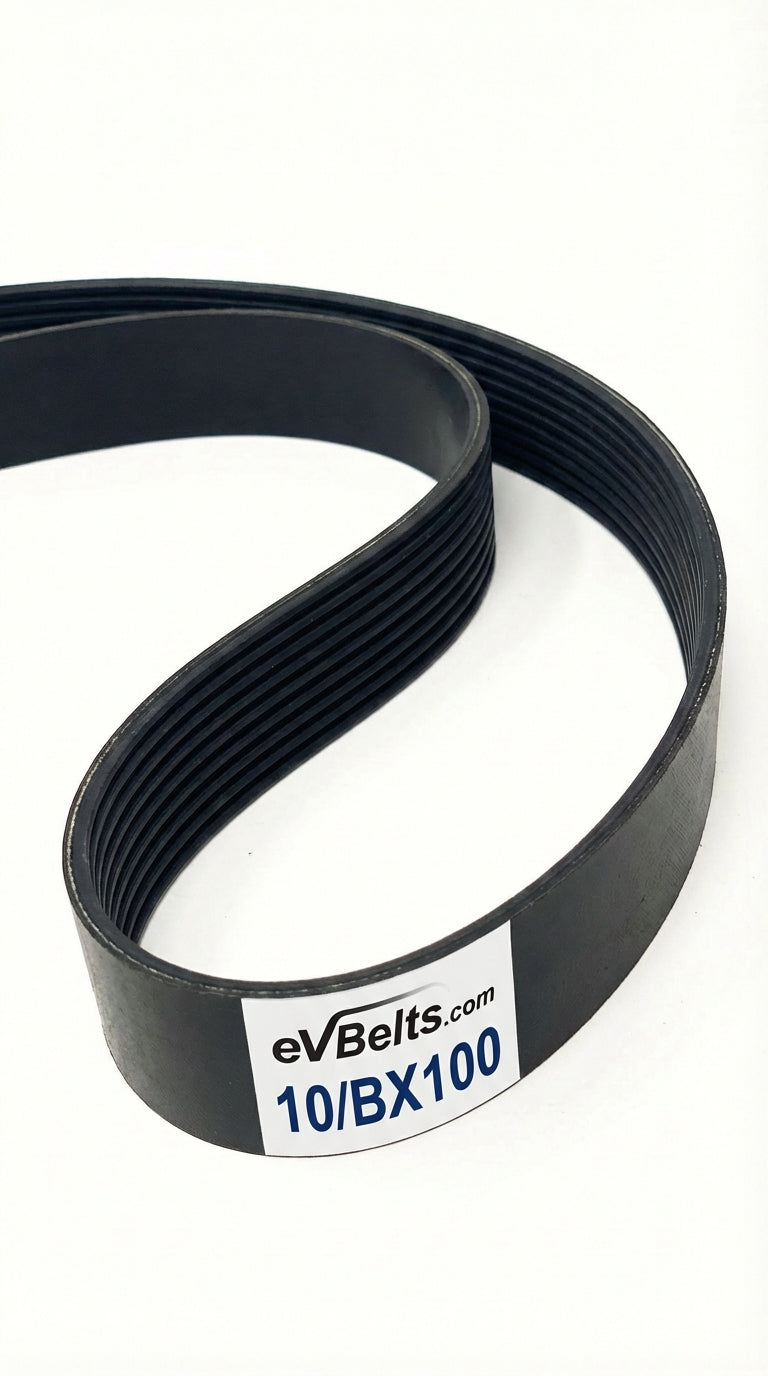

10/BX100

Top Width: 6.83" (173.48mm)
Outside Length: 101.8" (2585.7mm)
Inside Length: 100" (2540mm)
Min Pulley Diameter: 4"
Profile: Cogged/Notched
Configuration: 10-Band Set

The 10/BX100 is a factory-joined 10-band BX banded belt assembly measuring 6.83" wide x 101.8" long, offering improved flexibility around smaller pulleys.

SKU: 1216309

$429.23

0 In Stock

In stock and ready to ship

Estimated delivery between June 18 and June 20.

Technical Specifications

Part Number	10/BX100
Top Width	6.83 in / 173.48 mm
Belt Depth	0.4375 in / 11.11 mm
Inside Length	100.0 in / 2540.0 mm
Outside Length	101.8 in / 2585.7 mm
Effective Length	101.4 in
Min Sheave Diameter	4.0 in / 101.6 mm
Ribs	10
Cogged	Yes
